General data: | |
---|---|

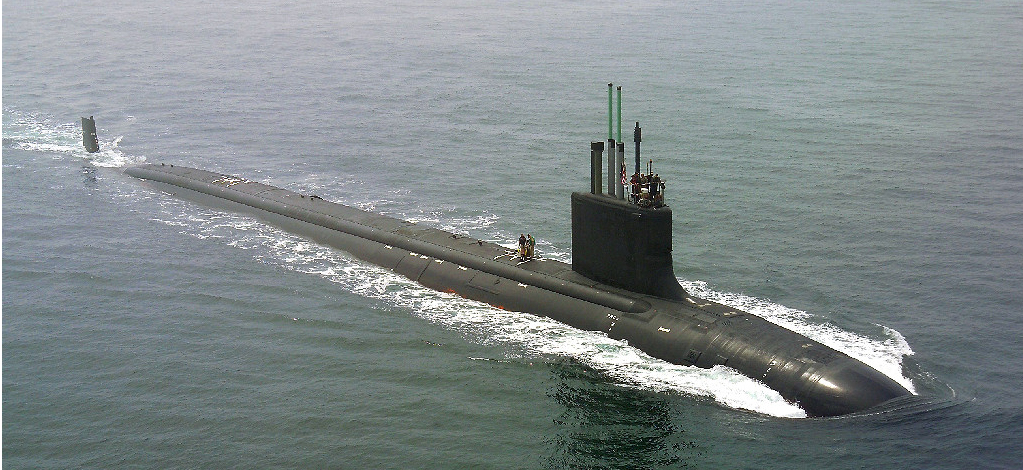

Type: SSN - Nuclear Powered Attack Submarine | Max Depth: -450 m |
Commissioned: 2008 | Length: 114.9 m |
Beam: 10 m | Draft: 9.5 m |
Crew: 113 | Displacement: 6600 t |
Propulsion: 1x Nuclear Reactor | Max Speed: 32 kt |
Sensors / EW: |
---|
AN/BLQ-10(V)1 - (Virginia, CS-5500) ESM SIGINT (ELINT & COMINT) w/ OTH Targeting Max Range: 926 km |
AN/WLY-1 - (2005) Acoustic Intercept (Active Sonar Warning) Acoustic Intercept & Torpedo Warning Max Range: 27.8 km |
AN/BQQ-10 - (Virginia) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 129.6 km |
AN/BPS-16 - (1996) Radar Radar, Surface Search, Medium-Range Max Range: 166.7 km |
AN/TB-29 - (1996, 10x Produced) TASS, Passive-Only Towed Array Sonar System TASS, Passive-Only Thin Line Towed Array Sonar System Max Range: 185.2 km |
AN/TB-34 - (2007, 2600ft Fat-Line) TASS, Passive-Only Towed Array Sonar System TASS, Passive-Only Fat Line Towed Array Sonar System Max Range: 148.2 km |
AN/BQG-5A LWWAA [BSY-2] - (Virginia) Hull Sonar, Passive-Only Hull Sonar, Passive-Only Ranging Flank Array Search & Track Max Range: 129.6 km |
AN/BQS-15 - (Virginia) Hull Sonar, Active-Only Hull Sonar, Active-Only Under-Ice Navigation and Mine & Obstacle Avoidance Max Range: 0.7 km |
AN/BVS-1 TV/EO Component - (1.5x/24x Zoom) Visual Visual, Surveillance & Navigation TV Camera Max Range: 41.7 km |
AN/BVS-1 LLTV Component - (2000s/2010s, 1.5x/24x Zoom) Visual LLTV, Surveillance & Navigation Camera Max Range: 41.7 km |
AN/BVS-1 IR Component - (2000s/2010s, 1.5x/12x Zoom) Infrared Infrared, Surveillance & Navigation Camera Max Range: 41.7 km |
AN/BVS-1 QLR IR Component - (1x/2x Zoom) Infrared Infrared, Day/Night Spherical Situational Awareness & Fire Control Max Range: 27.8 km |
Weapons: |
---|
UGM-109A Tomahawk TLAM-N [W80-0 200kT Nuclear] -
(1985-2013, TT) Guided Weapon Land Max: 2500.2 km. |
UGM-109C Tomahawk Blk III TLAM -
(1994, TT) Guided Weapon Land Max: 1666.8 km. |
UGM-109E Tomahawk Blk IV TACTOM -
(2008, TT) Guided Weapon Land Max: 1600.1 km. |
UGM-109D Tomahawk Blk III TLAM -
(1996, TT) Guided Weapon Land Max: 1296.4 km. |
Mk48 Mod 7 ADCAP CBASS -
(2008, Shallow Water) Torpedo Surface Max: 38.9 km. Subsurface Max: 38.9 km. |
UGM-109A Tomahawk TLAM-N [W80-0 200kT Nuclear] -
(1985-2013, VLS) Guided Weapon Land Max: 2500.2 km. |
UGM-109C Tomahawk Blk III TLAM -
(1994, VLS) Guided Weapon Land Max: 1296.4 km. |
UGM-109D Tomahawk Blk III TLAM -
(1996, VLS) Guided Weapon Land Max: 1296.4 km. |
UGM-109E Tomahawk Blk IV TACTOM -
(2005, VLS) Guided Weapon Land Max: 1600.1 km. |
ADC Mk4 Mod 1 Sonar Jammer -
(2004, 6-inch) Decoy (Expendable) Subsurface Max: 1.9 km. |
ADC Mk2 Mod 3 Torpedo Decoy -
(2007, 3-inch) Decoy (Expendable) Subsurface Max: 1.9 km. |
ADC Mk3 Mod 1 Torpedo Countermeasure -
(2004, 6-inch) Decoy (Expendable) Subsurface Max: 1.9 km. |
ADC Mk2 Mod 0 Torpedo Decoy -
(1979, 3-inch) Decoy (Expendable) Subsurface Max: 1.9 km. |
