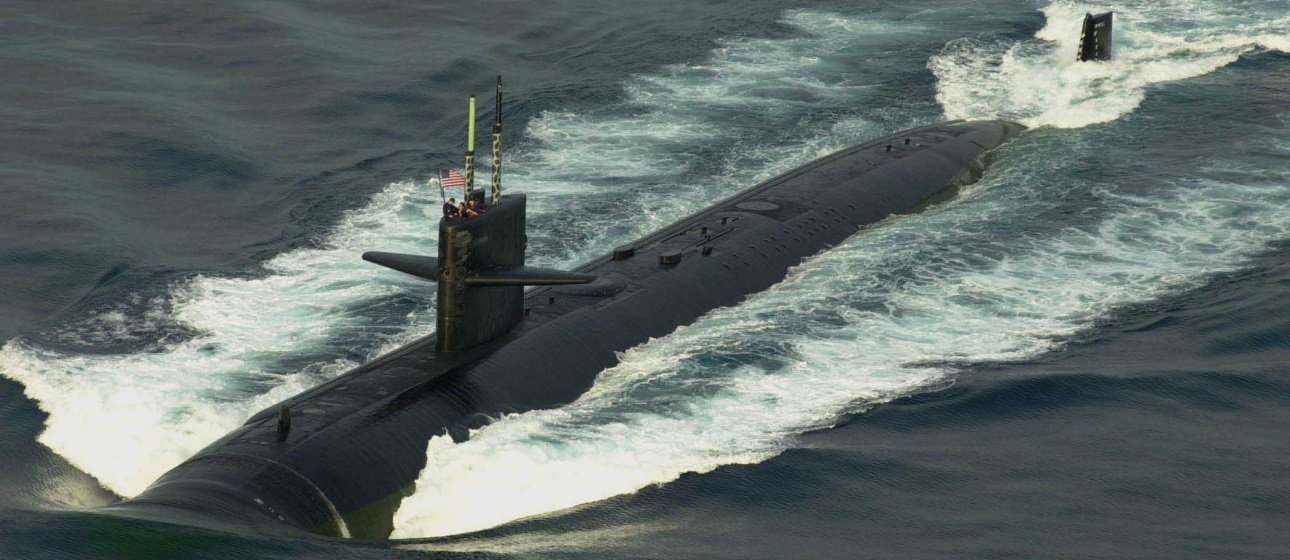

General data:
Type: SSN - Nuclear Powered Attack Submarine Max Depth: -300 m
Commissioned: 2008 Length: 109.7 m
Beam: 10.1 m Draft: 9.75 m
Crew: 129 Displacement: 6080 t
Propulsion: 1x S6G Nuclear Reactor Max Speed: 32 kt
Sensors / EW:
AN/TB-29A - (2004, Thin Line) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Thin Line Towed Array Sonar System
Max Range: 185.2 km
AN/WLR-8(V)2 - (Los Angeles) ESM
ELINT
Max Range: 926 km
AN/WLR-9A - (AN/BLR-14, Sonar Warning Receiver) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept & Torpedo Warning
Max Range: 27.8 km
AN/BPS-15A - (AN/BLR-14, Sonar Warning Receiver) Radar
Radar, Surface Search, Medium-Range
Max Range: 166.7 km
AN/BRD-7 - (AN/BLR-14, Sonar Warning Receiver) ESM
HF/DF
Max Range: 926 km
AN/TB-16D - (1996, 2600ft Fat-Line) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Fat Line Towed Array Sonar System
Max Range: 129.6 km
AN/WLR-10 - (Assoc w AN/ALR-8) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/BQS-15 - (Assoc w AN/ALR-8) Hull Sonar, Active-Only
Hull Sonar, Active-Only Under-Ice Navigation and Mine & Obstacle Avoidance
Max Range: 0.7 km
AN/BQQ-5E(V)3 [BQS-13] - (1999, Refitted Los Angeles) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 74.1 km
Type 18 Periscope Optical Component - (Baseline, 1970s+) Visual
Visual, Surveillance Periscope
Max Range: 41.7 km
Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
Weapons:
UGM-109C Tomahawk Blk III TLAM - (1994, TT) Guided Weapon
Land Max: 1666.8 km.
UGM-109E Tomahawk Blk IV TACTOM - (2008, TT) Guided Weapon
Land Max: 1600.1 km.
UGM-109D Tomahawk Blk III TLAM - (1996, TT) Guided Weapon
Land Max: 1296.4 km.
Mk48 Mod 7 ADCAP CBASS - (2008, Shallow Water) Torpedo
Surface Max: 38.9 km. Subsurface Max: 38.9 km.
ADC Mk2 Mod 0 Torpedo Decoy - (1979, 3-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
