General data:

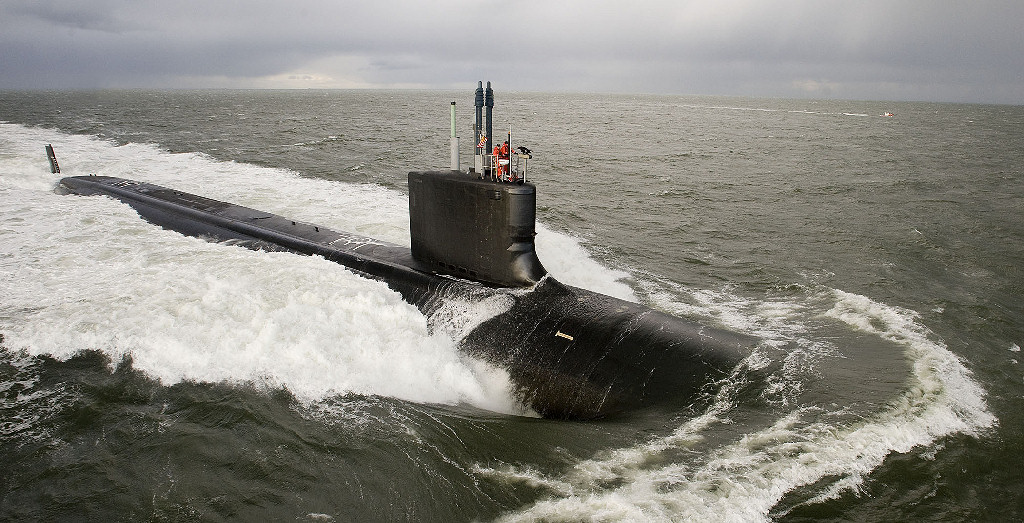

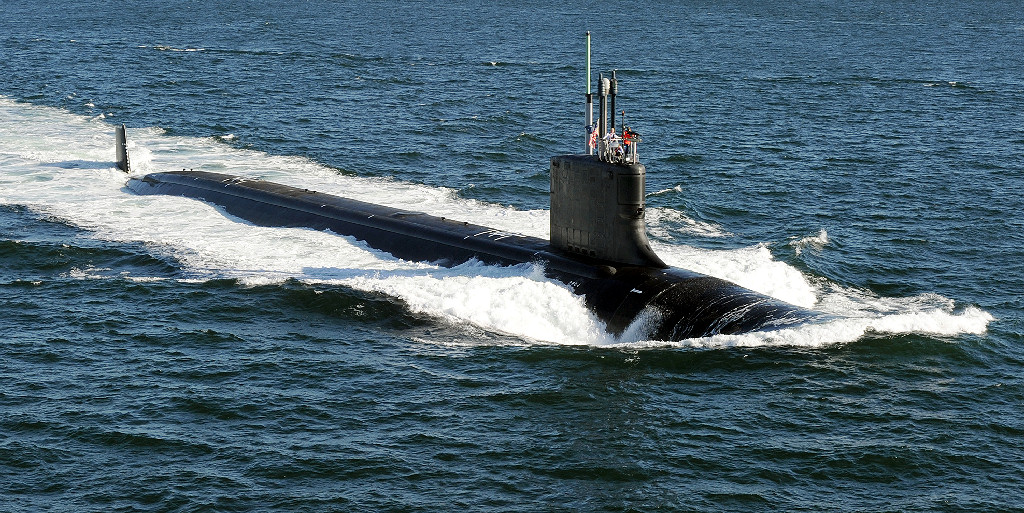

Type: SSN - Nuclear Powered Attack Submarine Max Depth: -450 m
Commissioned: 2016 Length: 114.9 m
Beam: 10 m Draft: 9.5 m
Crew: 113 Displacement: 6600 t
Propulsion: 1x Nuclear Reactor Max Speed: 32 kt
Sensors / EW:
AN/BLQ-10(V)1 - (Virginia, CS-5500) ESM
SIGINT (ELINT & COMINT) w/ OTH Targeting
Max Range: 926 km
AN/WLY-1 - (2005) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept & Torpedo Warning
Max Range: 27.8 km
AN/BQQ-10 - (Virginia) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 129.6 km
AN/BPS-16 - (1996) Radar
Radar, Surface Search, Medium-Range
Max Range: 166.7 km
AN/TB-29 - (1996, 10x Produced) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Thin Line Towed Array Sonar System
Max Range: 185.2 km
AN/TB-34 - (2007, 2600ft Fat-Line) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Fat Line Towed Array Sonar System
Max Range: 148.2 km
AN/BQG-5A LWWAA [BSY-2] - (Virginia) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 129.6 km
AN/BQS-15 - (Virginia) Hull Sonar, Active-Only
Hull Sonar, Active-Only Under-Ice Navigation and Mine & Obstacle Avoidance
Max Range: 0.7 km
AN/BVS-1 TV/EO Component - (1.5x/24x Zoom) Visual
Visual, Surveillance & Navigation TV Camera
Max Range: 41.7 km
AN/BVS-1 LLTV Component - (2000s/2010s, 1.5x/24x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
AN/BVS-1 IR Component - (2000s/2010s, 1.5x/12x Zoom) Infrared
Infrared, Surveillance & Navigation Camera
Max Range: 41.7 km
AN/BVS-1 QLR IR Component - (1x/2x Zoom) Infrared
Infrared, Day/Night Spherical Situational Awareness & Fire Control
Max Range: 27.8 km
Weapons:

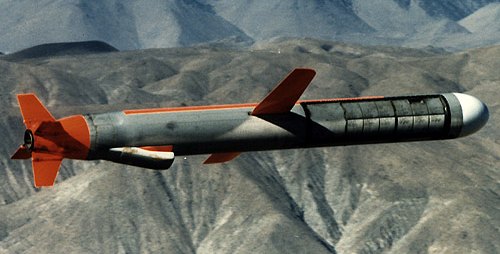

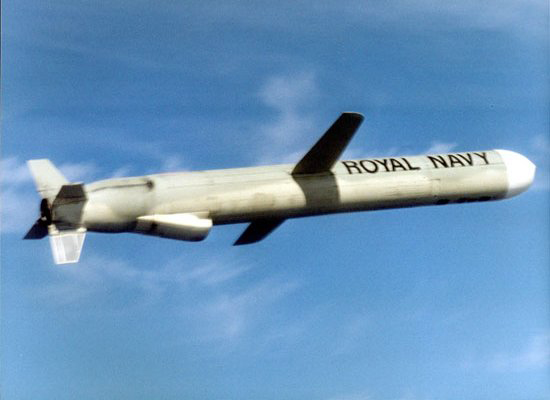

UGM-109C Tomahawk Blk III TLAM - (1994, TT) Guided Weapon
Land Max: 1666.8 km.

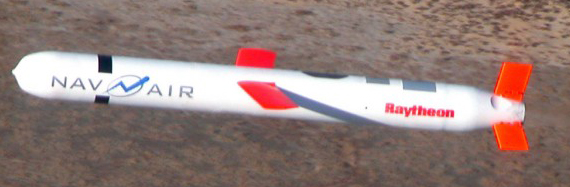

UGM-109E Tomahawk Blk IV TACTOM - (2008, TT) Guided Weapon
Land Max: 1600.1 km.
UGM-109D Tomahawk Blk III TLAM - (1996, TT) Guided Weapon
Land Max: 1296.4 km.
Mk48 Mod 7 ADCAP CBASS - (2008, Shallow Water) Torpedo
Surface Max: 38.9 km. Subsurface Max: 38.9 km.
UGM-109I Tomahawk Blk IV MMT [Multi-Mission] - (2015, TT, ASuW Capable) Guided Weapon
Surface Max: 1600.1 km. Land Max: 1600.1 km.

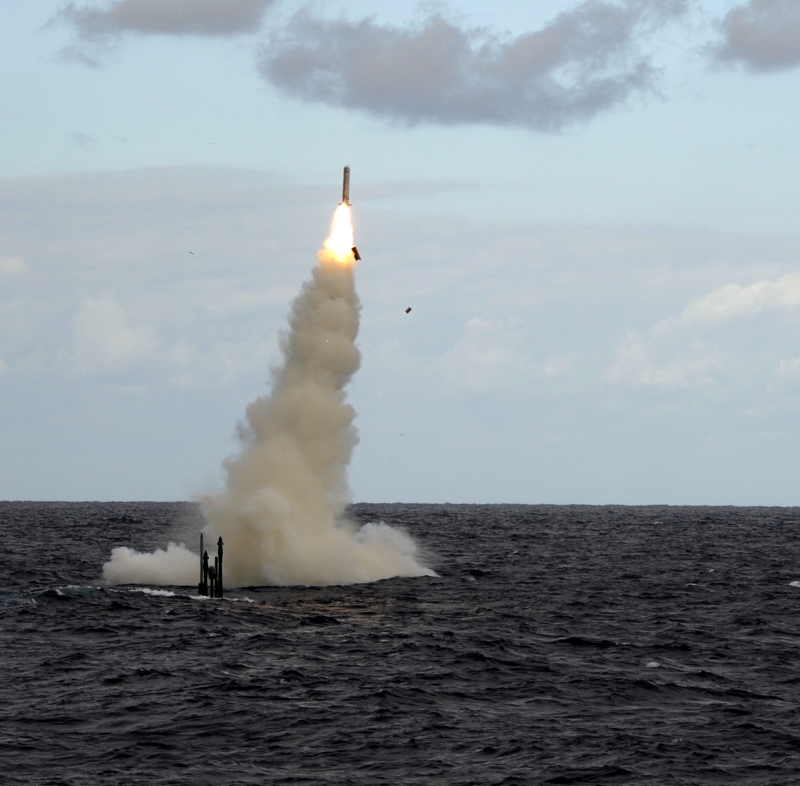

UGM-109C Tomahawk Blk III TLAM - (1994, VLS) Guided Weapon
Land Max: 1296.4 km.
UGM-109D Tomahawk Blk III TLAM - (1996, VLS) Guided Weapon
Land Max: 1296.4 km.
UGM-109E Tomahawk Blk IV TACTOM - (2005, VLS) Guided Weapon
Land Max: 1600.1 km.
UGM-109I Tomahawk Blk IV MMT [Multi-Mission] - (2015, VLS, ASuW Capable) Guided Weapon
Surface Max: 1600.1 km. Land Max: 1600.1 km.
ADC Mk4 Mod 1 Sonar Jammer - (2004, 6-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk2 Mod 3 Torpedo Decoy - (2007, 3-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk3 Mod 1 Torpedo Countermeasure - (2004, 6-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk2 Mod 0 Torpedo Decoy - (1979, 3-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
