General data:

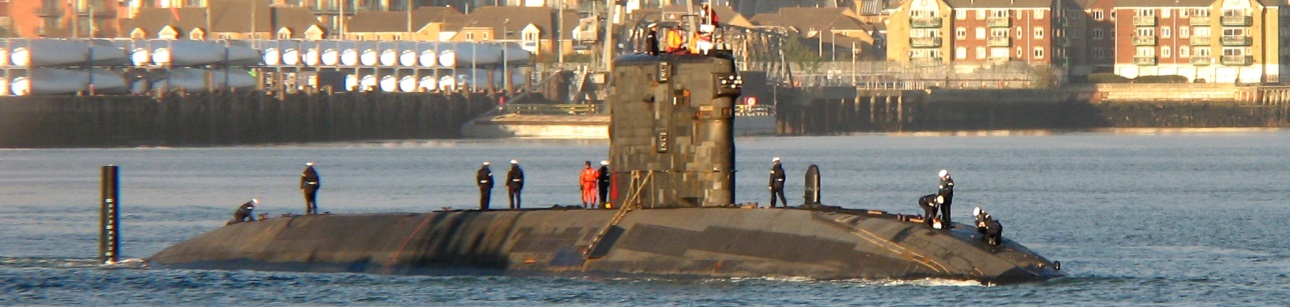

Type: SSN - Nuclear Powered Attack Submarine Max Depth: -300 m
Commissioned: 2003 Length: 85.4 m
Beam: 9.8 m Draft: 9.5 m
Crew: 97 Displacement: 4740 t
Propulsion: 1x Rolls-Royce PWR.1 Nuclear Reactor Max Speed: 32 kt
Sensors / EW:
UAP-1 - (Trafalgar) ESM
ELINT w/ OTH Targeting
Max Range: 926 km
Type 1007 - (1988, KH 1007) Radar
Radar, Surface Search & Navigation
Max Range: 177.8 km
CXA(1) [Telegon 6] - (1988, KH 1007) ESM
HF/DF
Max Range: 926 km
Type 2065 [Type 2076 Suite] - (1988, KH 1007) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Towed Array Sonar System
Max Range: 185.2 km
Type 2074LRE [Type 2076 Suite] - (1988, KH 1007) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 74.1 km
Type 2082 - (1994) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept, Passive Ranging
Max Range: 27.8 km
Type 2072 [Type 2076 Suite] - (Trafalgar, FMS 12, Type 2007 Replacement) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 129.6 km
Type 2077 Parian - (Trafalgar, FMS 12, Type 2007 Replacement) Hull Sonar, Active-Only
Hull Sonar, Active-Only Short-Range Sidescan Mapping, High-Definition LPI
Max Range: 1.1 km
Generic Submarine Periscope, Optical - (1980s, 1.5x/8x Zoom) Visual
Visual, Surveillance Periscope
Max Range: 41.7 km
Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
Weapons:
UGM-109C Tomahawk Blk III TLAM - (1994, TT) Guided Weapon
Land Max: 1666.8 km.
UGM-84B Harpoon IA - (1983) Guided Weapon
Surface Max: 120.4 km.
Spearfish Mod 0 - (1994) Torpedo
Surface Max: 11.1 km. Subsurface Max: 11.1 km.
SCAD 102 - (Internal) Decoy (Expendable)
Subsurface Max: 1.9 km.
SCAD 200 - Decoy (Expendable)
Subsurface Max: 1.9 km.
