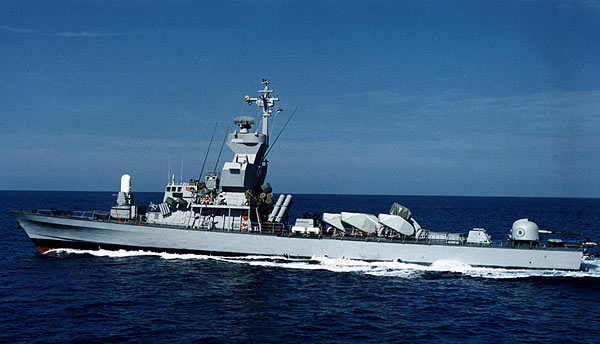

General data: | |
---|---|
Type: PCFG - Fast Guided Missile Patrol Craft | Max Speed: 30 kt |
Crew: 50 | Length: 61.7 m |
Beam: 7.6 m | Draft: 2.8 m |
Displacement Full: 488 t | Displacement: 420 t |
Operator: Navy | Commissioned: 2000 |
Propulsion: 4x MTU 16V 538 TB93 Diesels |
Sensors / EW: |
---|
EL/M-2221-GM STGR - (Barak FCR) Radar Radar, Target Indicator, 3D Surface-to-Air & Surface-to-Surface Max Range: 111.1 km |
EL/M-2228(S) 3D AMDR - (Barak FCR) Radar Radar, Air & Surface Search, 3D Short-Range Max Range: 101.9 km |
MSIS [IR] - (Group, 1991) Infrared Infrared, Weapon Director Camera Max Range: 37 km |
MSIS [EO] - (Group, 1991) Visual Visual, Weapon Director TV Camera Max Range: 37 km |
MSIS [Laser Rangefinder] - (Group, 1991) Laser Rangefinder Laser Rangefinder for Weapon Director Max Range: 0 km |
NS-9003PR - (3rd Gen, Assoc w NS-9005PR) ESM ELINT w/ OTH Targeting Max Range: 926 km |
NS-9005PR MBAT - (3rd Gen) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
Weapons: |
---|
Gabriel II -
(1977) Guided Weapon Surface Max: 51.9 km. |
20mm/85 Mk15 Phalanx Blk 1 Burst [300 rnds] -
Gun Air Max: 1.5 km. |
76mm/62 Compact HE Burst [4 rnds] -
Gun Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km. |
12.7mm/50 MG Burst [10 rnds] -
(Facility/Ship, No Anti-Air Capability) Gun Surface Max: 1.9 km. Land Max: 1.9 km. |
RGM-84D Harpoon IC -
(1986) Guided Weapon Surface Max: 138.9 km. |
Heatrap Flare -
(115mm, Israel) Decoy (Expendable) Surface Max: 1.9 km. |
BT-4 Chaff -
(115mm, Israel) Decoy (Expendable) Surface Max: 1.9 km. |
Wizard Floating Decoy -
(Israel, 115mm) Decoy (Expendable) Surface Max: 1.9 km. |
Barak 1 -
(1997) Guided Weapon Air Max: 11.1 km. |
20mm/70 Oerlikon Burst [20 rnds] -
Gun Air Max: 1.5 km. Surface Max: 1.9 km. Land Max: 1.9 km. |
LRCR Chaff -
(179mm, Israel) Decoy (Expendable) Surface Max: 1.9 km. |
