General data:

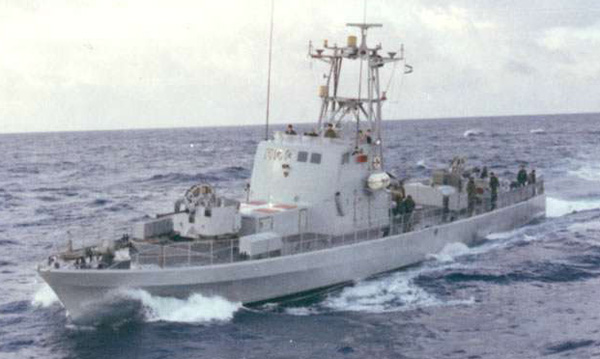

Type: PCFG - Fast Guided Missile Patrol Craft Max Speed: 40 kt
Crew: 35 Length: 45 m
Beam: 7 m Draft: 1.8 m
Displacement Full: 250 t Displacement: 220 t
Operator: Navy Commissioned: 1986
Propulsion: 4x MTU MD871 Diesels Decommissioned: 1994
Sensors / EW:
EDO 780 - (Small VDS, Assoc w EDO 786 Hull) VDS, Active Only Sonar
VDS, Active-Only Variable Depth Sonar
Max Range: 14.8 km
THD 1040 Neptune - (TRS 3030) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 46.3 km
Galileo OG R7/2 - (Galileo OG 20) Visual
Visual, Weapon Director TV Camera
Max Range: 129.6 km
Newton Alpha [ELT 211, ESM] - (Israeli MN-53) ESM
ELINT
Max Range: 926 km
Newton Alpha [ELT 521, ECM] - (Israeli MN-53) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
EDO Acoustic Intercept - (Israeli MN-53) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept
Max Range: 66.7 km
Weapons:
Gabriel II - (1977) Guided Weapon
Surface Max: 51.9 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
RGM-84D Harpoon IC - (1986) Guided Weapon
Surface Max: 138.9 km.
40mm/70 Single Breda Burst [4 rnds] - Gun
Air Max: 2.2 km. Surface Max: 5.6 km. Land Max: 5.6 km.
SRCR Chaff - (Israel, 90mm) Decoy (Expendable)
Surface Max: 1.9 km.
Mk46 NEARTIP Mod 5 - (1984) Torpedo
Subsurface Max: 7.4 km.
