| General data: | |
|---|---|
| Type: FFG - Guided Missile Frigate | Max Speed: 29 kt |
| Crew: 170 | Length: 111.7 m |
| Beam: 12.4 m | Draft: 4.8 m |
| Displacement Full: 2250 t | Displacement: 2180 t |
| Operator: PLAN | Commissioned: 1992 |
| Propulsion: 4x 18E390VA Diesels, CODAD | Decommissioned: 2015 |
| Sensors / EW: |
|---|
| China H/SJD-5 [Tamir-11 Impr] - (Jianghu II, EH-5) Hull Sonar, Active-Only Hull Sonar, Active-Only Search Max Range: 7.4 km |
| Generic TV Camera - (2nd Gen, Target Tracking And Identification) Visual Visual, Target Tracking and Identification TV Camera Max Range: 148.2 km |
| China Type 342 Fog Lamp [Radar] - (2nd Gen, Target Tracking And Identification) Radar Radar, FCR, Surface-to-Air, Short-Range Max Range: 29.6 km |
| China Type 343 Sun Visor [Radar] - (Group, 100mm FCS, Sun Visor / Wasp Head) Radar Radar, FCR, Weapon Director Max Range: 27.8 km |
| China Type 343 Wasp Head [Visual Director] - (Group, 100mm FCS, Sun Visor / Wasp Head) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
| China Type 341 Rice Lamp - (37mm) Radar Radar, FCR, Weapon Director Max Range: 37 km |
| Decca 1290 Master - (37mm) Radar Radar, Surface Search & Navigation Max Range: 37 km |
| China Type 981 [Newton Beta] - (NRJ-5, NJ-81, RWD-8,) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
| China H/LJQ-517B [Type 517H-1] Knife Rest - (Pea Sticks) Radar Radar, Air Search, 2D Long-Range Max Range: 333.4 km |
| China Type 360 - (Sea Tiger, MR-36A(?), SR-60, S-3, Seagull-S) Radar Radar, Air & Surface Search, 2D Medium-Range Max Range: 250 km |
| China Type 923-1 Jug Pair - (RW-23-1, Watch Dog) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| China Type 352 Square Tie - (SSM, Rangout) Radar Radar, FCR, Surface-to-Surface Max Range: 74.1 km |
| Weapons: |
|---|
| HQ-61B -
(China, 1987, Naval) Guided Weapon Air Max: 18.5 km. Surface Max: 18.5 km. |
| China Type 3200 ASW Rocket Salvo [6 rnds] -
Rocket Subsurface Max: 1.9 km. |
| 100mm/56 Twin PJ33A Frag Burst [2 rnds] -
Gun Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km. |
| 100mm/56 Twin PJ33A HE [2 rnds] -
Gun Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km. |
| 37mm/63 Twin Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. |

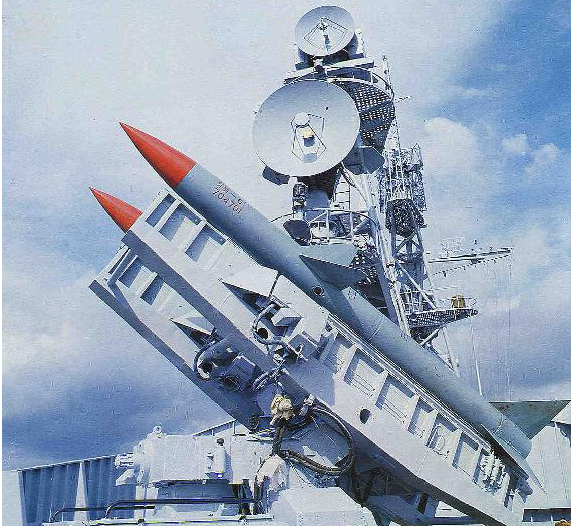

| YJ-8A [C-801A] -
(China, 1993) Guided Weapon Surface Max: 46.3 km. |
| Generic Chaff Rocket -
(Ship-only) Decoy (Expendable) Surface Max: 1.9 km. |
| Generic Flare Rocket [Single Spectral] -
(Ship-only) Decoy (Expendable) Surface Max: 1.9 km. |
| Depth Charge [Generic] -
Depth Charge Subsurface Max: 0.2 km. |
