General data: | |
---|---|

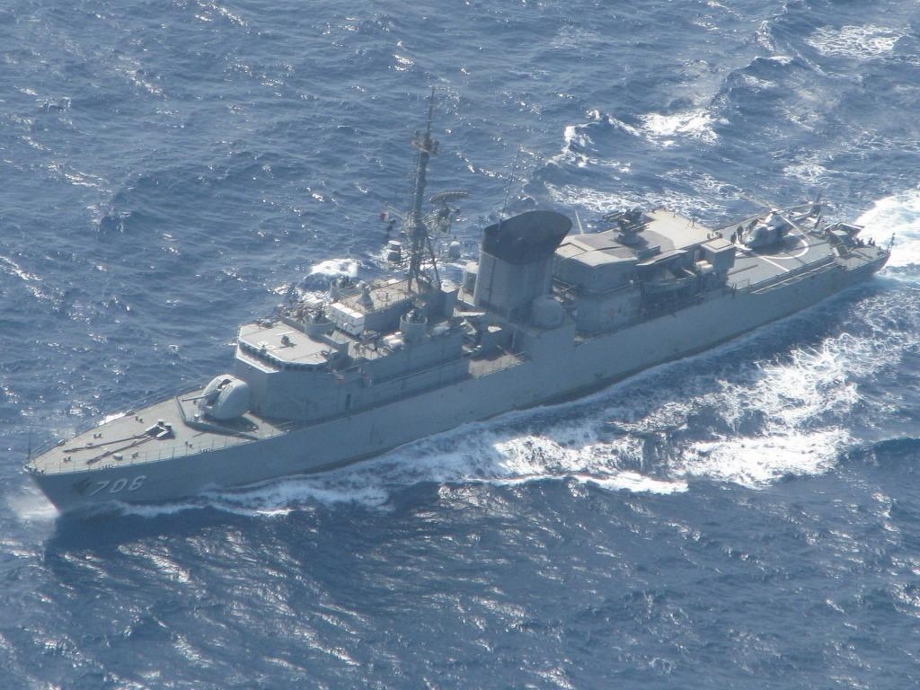

Type: FFG - Guided Missile Frigate | Max Speed: 30 kt |
Crew: 179 | Length: 115 m |
Beam: 12.5 m | Draft: 3.4 m |
Displacement Full: 2610 t | Displacement: 2250 t |
Operator: Royal Navy | Commissioned: 1986 |
Propulsion: 4x SEMT-Pielstick 16 PA6 BTC Diesels |
Sensors / EW: |
---|
DR 4000S - (ARBR 17) ESM ELINT w/ OTH Targeting Max Range: 926 km |
Telegon 6 - (CXA(1)) ESM HF/DF Max Range: 926 km |
NAJA [Optronic] - (Group, 1977, DMAb) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
NAJA [Laser Rangefinder] - (Group, 1977, DMAb) Laser Rangefinder Laser Rangefinder for Weapon Director Max Range: 7.4 km |
DRBV 15 Sea Tiger [TRS 3001] - (Group, 1977, DMAb) Radar Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface Max Range: 133.3 km |
DRBC 32 - (GFCR) Radar Radar, FCR, Weapon Director Max Range: 37 km |
TSM 2630 Sorel - (GFCR) VDS, Active/Passive Sonar VDS, Active/Passive Variable Depth Sonar Max Range: 14.8 km |
TSM 2630 Diodon - (GFCR) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 7.4 km |
TRS 3204 Castor IIC [Radar] - (Crotale FCR) Radar Radar, FCR, Surface-to-Air, Short-Range Max Range: 29.6 km |
TRAKIR [IR] - (Castor IIC) Infrared Infrared, Target Tracking and Identification Camera Max Range: 185.2 km |
TRAKIR [TV Camera] - (Castor IIC) Visual Visual, Target Tracking and Identification TV Camera Max Range: 185.2 km |
Decca 1226 - (Castor IIC) Radar Radar, Surface Search & Navigation Max Range: 88.9 km |
Janet [ECM] - (Group) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
Janet [RWR] - (Group) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Weapons: |
---|
Otomat Mk2 Mod I -
(1980) Guided Weapon Surface Max: 185.2 km. |
DAGAIE Mk2 LIR Flare -
Decoy (Expendable) Surface Max: 1.9 km. |
DAGAIE Mk2 LEM Chaff -
Decoy (Expendable) Surface Max: 1.9 km. |
100mm/55 Model 1968 PFHE Burst [4 rnds] -
(Model 1968 CADAM/1968-II, Improved) Gun Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km. |
100mm/55 Model 1968 HE Burst [4 rnds] -
(Model 1968 CADAM/1968-II, Improved) Gun Surface Max: 13 km. Land Max: 13 km. |
F17P Mod 1 -
(1986, 550m, Ship Only, Offensive) Torpedo Surface Max: 7.4 km. Subsurface Max: 7.4 km. |
R.440N Crotale V3N -
Guided Weapon Air Max: 9.3 km. Surface Max: 9.3 km. |
40mm/70 Twin Breda Compact Burst [32 rnds] -
Gun Air Max: 2.2 km. Surface Max: 5.6 km. Land Max: 5.6 km. |
