General data:

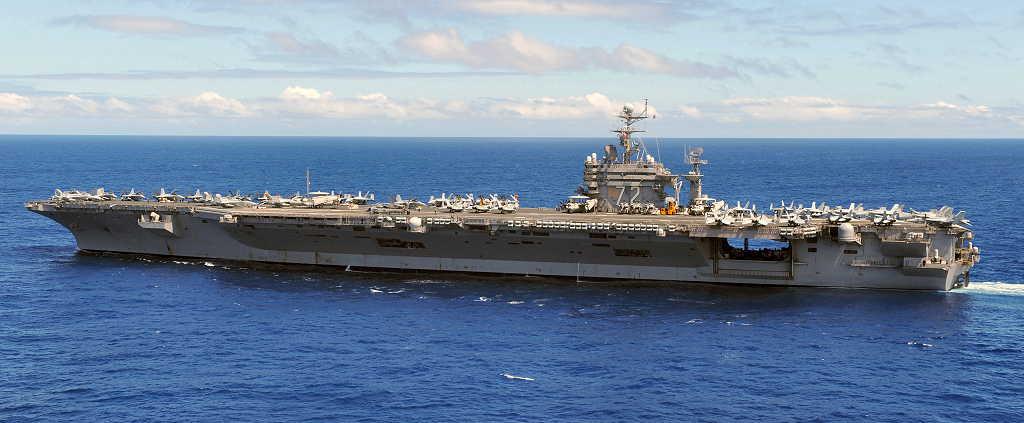

Type: CVN - Nuclear Powered Aircraft Carrier Max Speed: 35 kt
Crew: 5680 Length: 332.8 m
Beam: 40.8 m Draft: 11 m
Displacement Full: 100000 t Displacement: 84000 t
Operator: Navy Commissioned: 2017
Propulsion: 2x A4W Nuclear Reactors
Sensors / EW:
AN/WLR-1H(V)7 - ESM
ELINT
Max Range: 926 km
LN-66LP - (AN/SPS-59, 10kW) Radar
Radar, Surface Search, Short-Range
Max Range: 59.3 km
AN/SLQ-32(V)4 [ECM] - (Group) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
AN/SLQ-32(V)4 [ESM] - (Group) ESM
ELINT
Max Range: 926 km
AN/SPS-67(V)1 - (1982) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
AN/SPS-49(V)5 NTU - (1982) Radar
Radar, Air Search, 2D Long-Range
Max Range: 463 km
AN/SPS-48E NTU - (1988) Radar
Radar, Air Search, 3D Long-Range
Max Range: 407.4 km
AN/SPQ-9B - (2001) Radar
Radar, Target Indicator, 3D Surface-to-Air & Surface-to-Surface
Max Range: 46.3 km
AN/SPN-43C - (1994) Radar
Radar, Shipboard Air Traffic Control (SATC)
Max Range: 129.6 km
Mk95 [EO] - (Mk6 Mod 0, Mk91 FCS) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 148.2 km
Mk95 [Radar] - (MFCR, Mk91 FCS) Radar
Radar Illuminator, Medium-Range
Max Range: 118.5 km
Weapons:
RIM-162D ESSM - (2004, Mk29) Guided Weapon
Air Max: 55.6 km. Surface Max: 46.3 km.
20mm/100 Mk15 Phalanx Blk 1B Burst [300 rnds] - Gun
Air Max: 1.5 km. Surface Max: 1.9 km.
AN/SLQ-25A Nixie - Decoy (Towed)
Surface Max: 1.9 km.
RIM-116C RAM Blk II - (2015) Guided Weapon
Air Max: 18.5 km. Surface Max: 18.5 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk234 Nulka - (2002) Decoy (Expendable)
Surface Max: 1.9 km.
