| General data: | |
|---|---|

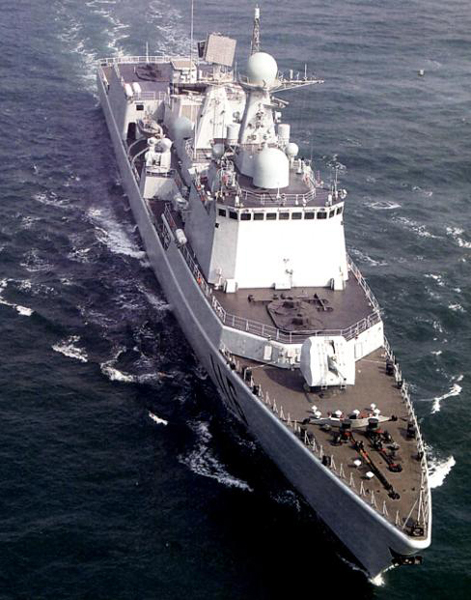

| Type: DDG - Guided Missile Destroyer | Max Speed: 29 kt |
| Crew: 250 | Length: 153 m |
| Beam: 16.5 m | Draft: 6 m |
| Displacement Full: 6100 t | Displacement: 5500 t |
| Operator: PLAN | Commissioned: 2004 |
| Propulsion: 2x Steam Turbines, 2x Boilers |
| Sensors / EW: |
|---|
| Decca 1290 Master - Radar Radar, Surface Search & Navigation Max Range: 37 km |
| China Type 360 - (Sea Tiger, MR-36A(?), SR-60, S-3, Seagull-S) Radar Radar, Air & Surface Search, 2D Medium-Range Max Range: 250 km |
| China Type 381A Rice Screen - (Sea Eagle) Radar Radar, Air & Surface Search, 3D Short-Range Max Range: 100 km |
| China H/LJQ-517B [Type 517H-1] Knife Rest - (Pea Sticks) Radar Radar, Air Search, 2D Long-Range Max Range: 333.4 km |
| China Type 344 - (GFCR, 100/130mm, MR-34) Radar Radar, FCR, Weapon Director Max Range: 27.8 km |
| Crotale TV Tracker - (Group, Crotale FCR, Castor IIJ?) Visual Visual, Target Tracking and Identification TV Camera Max Range: 74.1 km |
| China Type 345 [Radar] - (Crotale) Radar Radar, FCR, Surface-to-Air, Short-Range Max Range: 29.6 km |
| Piranha [IR] - (Castor IIJ) Infrared Infrared, Target Tracking and Identification Camera Max Range: 148.2 km |
| China Type 347G Rice Bowl - (37mm, EFR-1) Radar Radar, FCR, Weapon Director Max Range: 37 km |
| China Type 776 [LLVT] - (Group, Surveillance-Only, GDG-776) Visual LLTV, Surveillance Camera Max Range: 55.6 km |
| China Type 776 [RO Radar] - (Group, Surveillance-Only, GDG-776) Radar Radar, Range-Only (RO) Max Range: 14.8 km |
| China Type 776 [Laser Rangefinder] - (Group, Surveillance-Only, GDG-776) Laser Rangefinder Laser Rangefinder Max Range: 0 km |
| China Type 776 [IR] - (Group, Surveillance-Only, GDG-776) Infrared Infrared, Surveillance Camera Max Range: 55.6 km |
| China H/SJD-9 [DUBV 23] - (Luda III, Luhu) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 14.8 km |
| China Type 826 - (DEPRECATED, USE 7274; HZ-100, Assoc w Type 984/985 Jammer) ESM ELINT Max Range: 222.2 km |
| China Type 984-1 [ECM] - (RAMSES Copy) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
| China Type 984-1 [RWR] - (RAMSES Copy) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons: |
|---|
| YJ-83 [C-802A, CSS-N-8 Saccade] -
(1999) Guided Weapon Surface Max: 185.2 km. |
| 100mm/55 H/PJ-87 HE -
Gun Surface Max: 13 km. Land Max: 13 km. |
| 100mm/55 H/PJ-87 HECVT -
Gun Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km. |
| Yu-7 -
(China, 1998?) Torpedo Subsurface Max: 3.7 km. |
| HQ-7 Crotale [FM-80] Naval -
(China, 1990, CSA-4) Guided Weapon Air Max: 9.3 km. Surface Max: 9.3 km. |
| 37mm/63 Twin Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. |
| Generic Chaff Rocket -
(Ship-only) Decoy (Expendable) Surface Max: 1.9 km. |
| Generic Flare Rocket [Single Spectral] -
(Ship-only) Decoy (Expendable) Surface Max: 1.9 km. |
