General data:

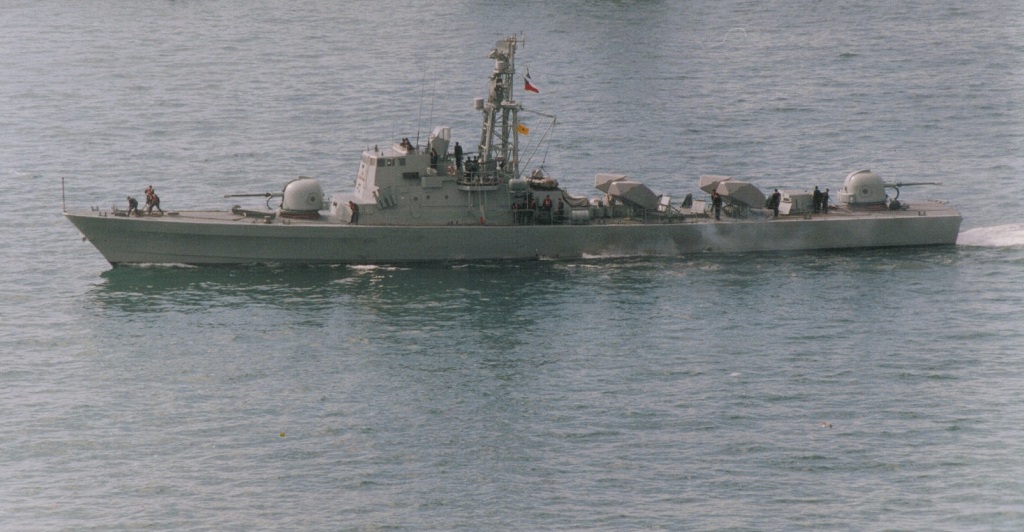

Type: PCFG - Fast Guided Missile Patrol Craft Max Speed: 30 kt
Crew: 45 Length: 58.1 m
Beam: 7.6 m Draft: 2.4 m
Displacement Full: 450 t Displacement: 415 t
Operator: Navy Commissioned: 1980
Propulsion: 4x MTU 16V 538 TB82 Diesels
Sensors / EW:
THD 1040 Neptune - (TRS 3030) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 46.3 km
EL/M-2221 [RTN-10X (Orion 10X)] - (1972, 76mm FCR) Radar
Radar, FCR, Weapon Director
Max Range: 37 km
Galileo OG R7/2 - (Galileo OG 20) Visual
Visual, Weapon Director TV Camera
Max Range: 129.6 km
Newton Alpha [ELT 211, ESM] - (Israeli MN-53) ESM
ELINT
Max Range: 926 km
Newton Alpha [ELT 521, ECM] - (Israeli MN-53) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
Weapons:
Gabriel II - (1977) Guided Weapon
Surface Max: 51.9 km.
20mm/70 Oerlikon Mk7 Burst [20 rnds] - Gun
Air Max: 1.5 km. Surface Max: 1.9 km. Land Max: 1.9 km.
76mm/62 Compact HE Burst [4 rnds] - Gun
Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km.
LRCR Chaff - (179mm, Israel) Decoy (Expendable)
Surface Max: 1.9 km.
SRCR Chaff - (Israel, 90mm) Decoy (Expendable)
Surface Max: 1.9 km.
