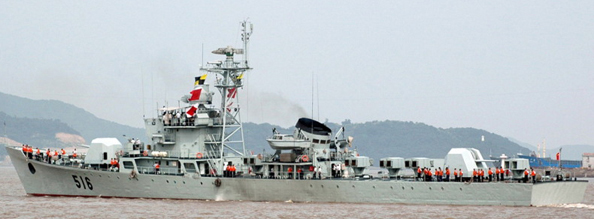

Type 053H Jianghu I Mod [516 Jiujiang] - 2005, 1x, Land Attack/Fire Support
| General data: | |
|---|---|
| Type: FFG - Guided Missile Frigate | Max Speed: 26 kt |
| Crew: 200 | Length: 103.2 m |
| Beam: 10.8 m | Draft: 3.1 m |
| Displacement Full: 1661 t | Displacement: 1425 t |
| Operator: Navy | Commissioned: 2005 |
| Propulsion: 2x 12PA68TC Diesels | Decommissioned: 2017 |
| Sensors / EW: |
|---|
| China Type 352 Square Tie - (SSM, Rangout) Radar Radar, FCR, Surface-to-Surface Max Range: 74.1 km |
| China Type 923-1 Jug Pair - (RW-23-1, Watch Dog) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| China Type 343 Sun Visor [Radar] - (Group, 100mm FCS) Radar Radar, FCR, Weapon Director Max Range: 27.8 km |
| China Type 343 Wasp Head [Visual Director] - (Group, 100mm FCS) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
| China Type 726 Fin Curve [Decca 707 Copy] - (Group, 100mm FCS) Radar Radar, Surface Search & Navigation Max Range: 37 km |
| China Type 354 Eye Shield - (2D, MX-902) Radar Radar, Air & Surface Search, 3D Medium-Range Max Range: 185.2 km |
| China SJD-5 [Tamir-11 Impr] - (Jianghu II, EH-5) Hull Sonar, Active-Only Hull Sonar, Active-Only Search Max Range: 7.4 km |
| Weapons: |
|---|
| Depth Charge [Generic] -
Depth Charge Subsurface Max: 0.2 km. |
| China Type 81 ASW Rocket Salvo [5 rnds] -
(RBU-1200) Rocket Subsurface Max: 1.9 km. |
| 37mm/63 Twin Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. |
| 100mm/55 H/PJ-87 Twin HECVT Burst [2 rnds] -
Gun Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km. |
| 100mm/55 H/PJ-87 Twin HE Burst [2 rnds] -
Gun Surface Max: 13 km. Land Max: 13 km. |
| 122mm MLRS -
(Generic) Rocket Surface Max: 18.5 km. Land Max: 18.5 km. |
