General data:

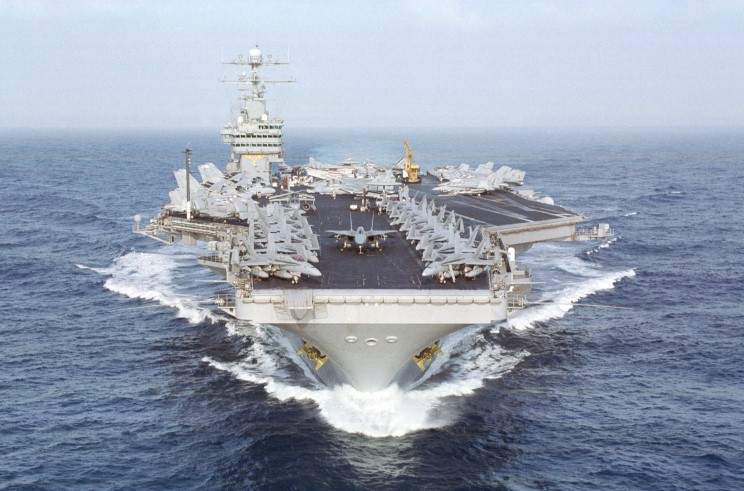

Type: CVN - Nuclear Powered Aircraft Carrier Max Speed: 35 kt
Crew: 5680 Length: 332.8 m
Beam: 40.8 m Draft: 11 m
Displacement Full: 97000 t Displacement: 81600 t
Operator: Navy Commissioned: 1994
Propulsion: 2x A4W Nuclear Reactors
Sensors / EW:
AN/WLR-1H(V)3 - ESM
ELINT
Max Range: 926 km
Mk23 TAS - (1982, Mk91 FCS, SWY-1) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 203.7 km
AN/SPS-67(V)1 - (1982) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
AN/SPS-49(V)5 NTU - (1982) Radar
Radar, Air Search, 2D Long-Range
Max Range: 463 km
AN/SPS-48E NTU - (1988) Radar
Radar, Air Search, 3D Long-Range
Max Range: 407.4 km
AN/SPS-64(V)9 [RM 1220 6X] - (20kW, USN, 1x antenna) Radar
Radar, Surface Search & Navigation
Max Range: 37 km
AN/SPN-43B - (1984) Radar
Radar, Shipboard Air Traffic Control (SATC)
Max Range: 129.6 km
Mk95 [EO] - (Mk6 Mod 0, Mk91 FCS) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 148.2 km
Mk95 [Radar] - (MFCR, Mk91 FCS) Radar
Radar Illuminator, Medium-Range
Max Range: 118.5 km
AN/SLQ-17 [ECM] - (Group, SLQ-29) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
AN/SLQ-17 [ESM] - (Group, SLQ-29) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Weapons:
RIM-7P Sea Sparrow - (1994) Guided Weapon
Air Max: 25.9 km. Surface Max: 25.9 km.
20mm/85 Mk15 Phalanx Blk 0 Burst [200 rnds] - Gun
Air Max: 1.5 km.
Mk214 Sea Gnat Chaff [Seduction] - (1987) Decoy (Expendable)
Surface Max: 1.9 km.
Mk216 Sea Gnat Chaff [Distraction] - (1988) Decoy (Expendable)
Surface Max: 1.9 km.
Mk186 TORCH Flare [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
AN/SLQ-25 Nixie - Decoy (Towed)
Surface Max: 1.9 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
