General data: | |
---|---|

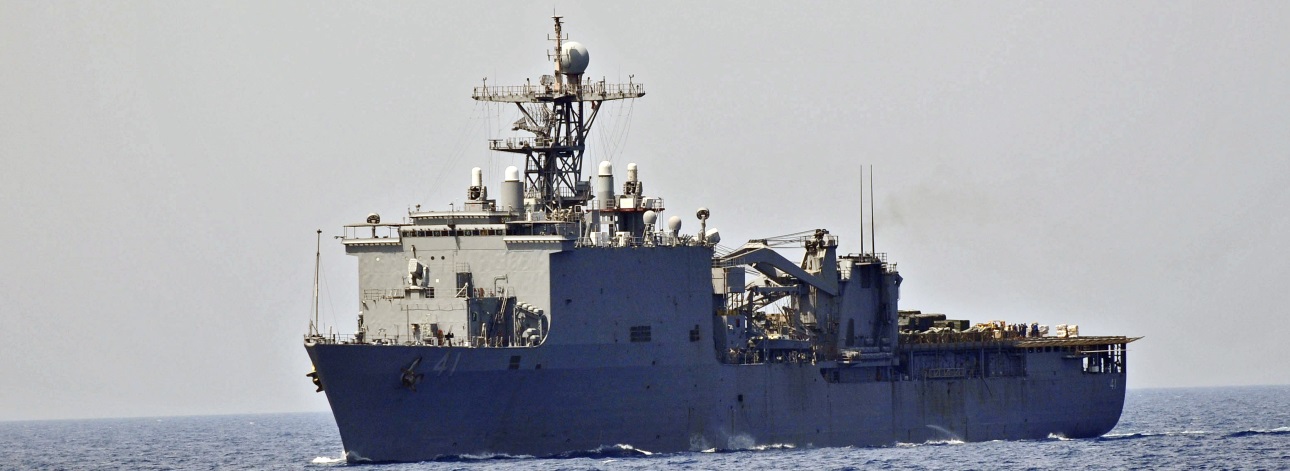

Type: LSD - Dock Landing Ship | Max Speed: 22 kt |
Crew: 413 | Length: 185.9 m |
Beam: 25.6 m | Draft: 6.4 m |
Displacement Full: 16360 t | Displacement: 14000 t |
Operator: Navy | Commissioned: 2003 |
Propulsion: 4x Colt Diesels |
Sensors / EW: |
---|
AN/SLQ-32(V)1 [RWR] - (Group, 1980) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
AN/SPS-67(V)1 - (1982) Radar Radar, Surface Search & Navigation Max Range: 64.8 km |
AN/SPS-49(V)5 NTU - (1982) Radar Radar, Air Search, 2D Long-Range Max Range: 463 km |
AN/SPS-64(V)9 [RM 1220 6X] - (20kW, USN, 1x antenna) Radar Radar, Surface Search & Navigation Max Range: 37 km |
Weapons: |
---|
25mm/75 Bushmaster Mod 1 Burst [12 rnds] -
Gun Air Max: 1.5 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
AN/SLQ-49 Rubber Duck -
(DLF-2) Decoy (Expendable) Surface Max: 1.9 km. |
12.7mm/50 MG Burst [10 rnds] -
(Facility/Ship, No Anti-Air Capability) Gun Surface Max: 1.9 km. Land Max: 1.9 km. |
20mm/85 Mk15 Phalanx Blk 1A Burst [300 rnds] -
Gun Air Max: 1.5 km. |
Mk214 Sea Gnat Chaff [Seduction] -
(1987) Decoy (Expendable) Surface Max: 1.9 km. |
Mk216 Sea Gnat Chaff [Distraction] -
(1988) Decoy (Expendable) Surface Max: 1.9 km. |
Mk245 GIANT Flare -
(1997, DM19A1) Decoy (Expendable) Surface Max: 1.9 km. |
AN/SLQ-25A Nixie -
Decoy (Towed) Surface Max: 1.9 km. |
RIM-116B RAM Blk I -
(2001) Guided Weapon Air Max: 11.1 km. Surface Max: 11.1 km. |
