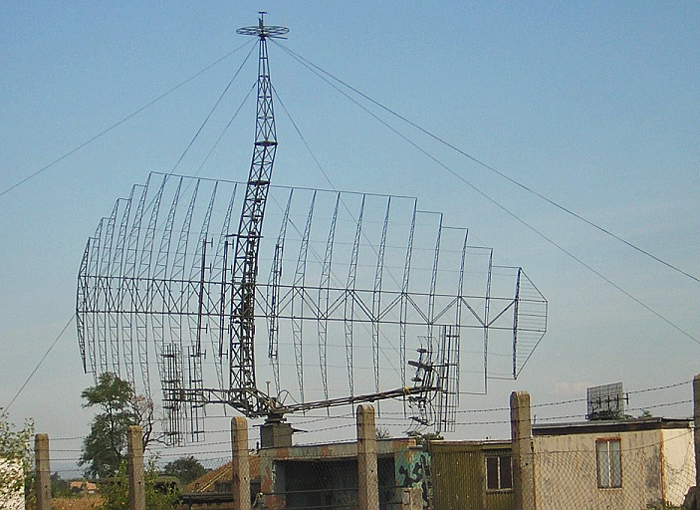

OVERVIEW: The P-14 radar (NATO name: TALL KING) is a long-range 2-D early warning radar operating in the "A" Band.
DETAILS: Also known as the 5N84A. Weapon systems associated with the P-14 include the SA-5 GAMMON
Specifications:
Frequency: 150-180 MHz ("A" Band)
Power output: 800 W (average) 700-900 kW (peak)
PRF: 100-200 Hz
Range Resolution: 1200 m
On/Off time: unknown
Detection Ranges
Fighter size aircraft
500 m altitude: unknown
10000m alt.: 300+ km
NOTES: The P-14 entered service in the 1950's. Users include the Soviet Union, Hungary, Peru, Syria, Poland, Iraq and Yugoslavia. VHF radars such as the P-14 remain important, as they can be better at detecting stealth aircraft than more recent, higher frequency radars.
SOURCES: Janes Radar and Electronic Warfare Systems "P-14 early-warning radars, 22 October 2004; Russian / PLA Low Band Surveillance Radar Systems (Counter LowObservable Technology Radars). (n.d.). Retrieved from http://www.ausairpower.net/APA-Rus-Low-Band-Radars.html#mozTocId284592 ; P-14 / 5N84A / TALL KING. (n.d.). Retrieved from http://www.globalsecurity.org/military/world/russia/tall-king.htm ; Radar Basics. (n.d.). Retrieved from http://www.radartutorial.eu/19.kartei/karte907.en.html ; http://fas.org/man/dod-101/sys/missile/row/radar-rus.htm
