OVERVIEW: The AN/TPQ-36A is a mobile, 3-D, Low Altitude Surveillance radar operating in the I Band.

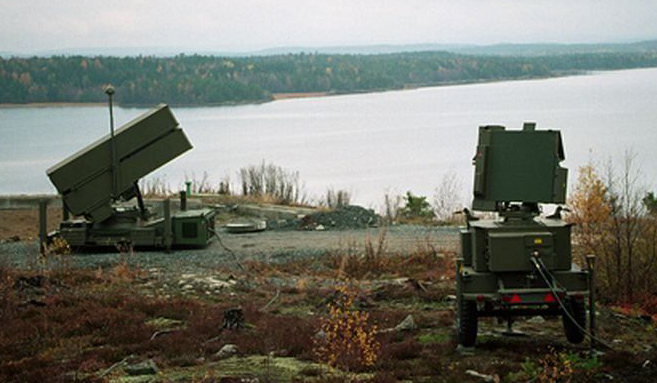

DETAILS: The AN/TPQ-36A radar is a pulse Doppler system. It is typically trailer mounted and towed by a 4x4 truck. It is capable of tracking up to 60 targets. Weapon systems associated with the AN/TPQ-36A include the NASAMS and NOAH SAM-missile.

Specifications:

Frequency: 8-10 GHz (I Band (NATO), X Band (IEEE))
Power output: unknown kW(average); unknown kW (peak)
PRF: unknown Hz
Accuracy: 30 m (range), 0.2 degrees azimuth
On/Off time: unknown
Deploy/Stow Time 10 minutes/ unknown minutes

Detection Range
fighter sized aircraft: 60 km


NOTES: Norway's started upgrading TPQ-36A 2003. This upgrade will convert TPQ-36A into units similar to that of the most recent AN/MPQ-64 Sentinel, high mobile ground-based radar.

SOURCES: Wikipedia. "NASAMS" Accessed December 2, 2013. http://en.wikipedia.org/wiki/NASAMS ; Deagel. "NASAMS TPQ-36A Radars Upgraded" Accessed December 2, 2013. http://www.deagel.com/news/NASAMS-TPQ-36A-Radars-Upgraded_n000000024.aspx ; International Electronic Countermeasures Handbook. Norwood, MA: Horizon House Publications, 2003, pg. 128 ; http://rbase.new-factoria.ru/missile/wobb/nasams/nasams.shtml
