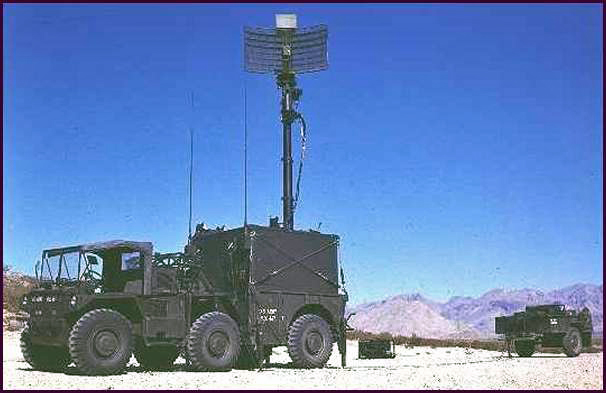

OVERVIEW: The AN/MPQ-49 Forward Area Alerting Radar (FAAR) is a lightweight, mobile, pulse doppler early warning radar that operates in the "D" Band. DETAILS: The AN/MPQ-49 is designed to provide early warning to tactical air defense units. Specifications:Frequency: unknown GHz (D Band)Power output: unknown kW(average); unknown kW (peak) PRF: unknown Hz Range Resolution: unknown m (range), unknown degrees azimuth On/Off time: unknownDeploy/Stow Time unknownDetection Range Max Range: 20 km NOTES: IOC 1969. SOURCES: AN/MPQ-49 Forward Area Alerting Radar." Wikipedia, the Free Encyclopedia. Accessed March 22, 2015. http://en.wikipedia.org/wiki/AN/MPQ-49_Forward_Area_Alerting_Radar. ; AN/FPS Series." Alternate Wars. Accessed March 22, 2015. http://www.alternatewars.com/BBOW/Radar/FPS_Series.htm.
