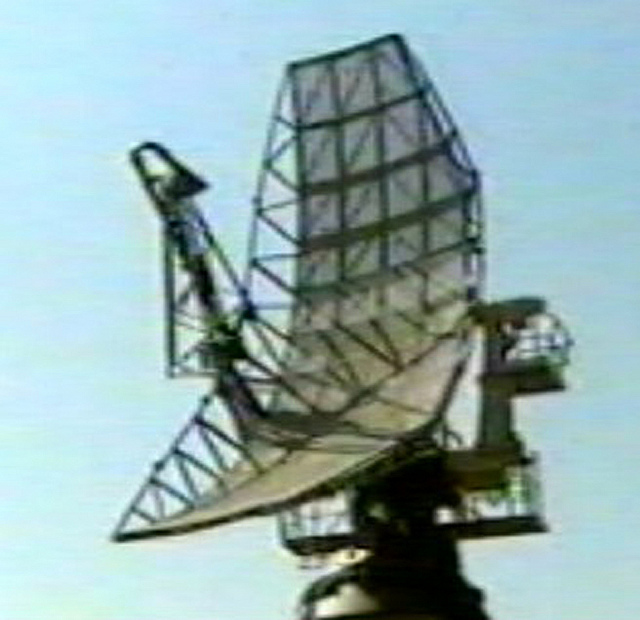

OVERVIEW: The AN/FPS-89 radar was a fixed, nodding height finding radar operating in the "E" band
DETAILS: The AN/FPS-89 is a modified AN/FPS-6. The AN/FPS-6 was noted for extreme accuracy at long range. The radar consisted of an antenna group, a transmitter group, a receiver group, and an ancillary group. Most fixed sites had a remote group, which allowed the control of the radar from inside the operations center. Also located in operations, was the anti-jam receivers. These receivers were fed with raw video from the tower receiver, and output several types of processed video to enable operators to see through jamming.
Specifications:
Frequency: 2.7-to-2.9 GHz (E Band (NATO), S Band (IEEE))
Power output: 3.6 kW(average); 3.5 MW (peak) 4.5 MW (peak prior to downgrade with FPS-6 magnetron)
PRF: 300-405 Hz
Range Resolution: 300 m (range), unknown degrees azimuth
On/Off time: unknown
Deploy/Stow Time N/A
Max Detection Ranges: 203 km
NOTES: IOC early 1970's.
