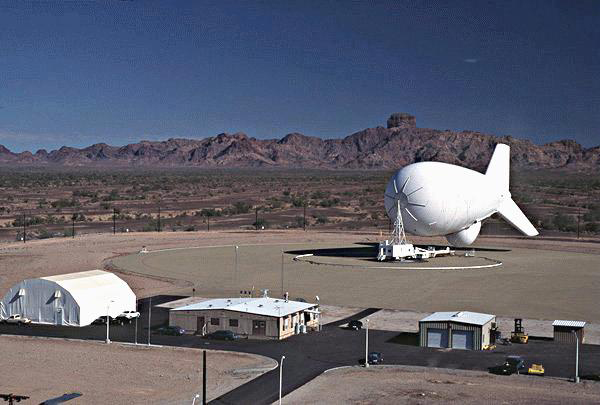

OVERVIEW: The AN/TPS-63 Low-Altitude Surveillance Radar (LASS) is a TPS-63 installed on a tethered balloon platform to provide stationary airborne surveillance. It operates in the D-Band.
DETAILS: The AN/TPS-63 LASS is designed to provide stationary airborne surveillance for extended periods of time. The AN/TPS-63 is a two-dimensional radar, which is doctrinally employed as a tactical gap-filler or as an early warning system for early deployment into the operational area. Jamming effects are also reduced by several forms of frequency agility, including pulse-to-pulse, burst, and sector. The radar also uses a full array of clutter-reduction processing techniques and can initiate up to 600 targets automatically.
Frequency: 1.250-1.350 GHz (D Band (NATO), L Band (IEEE))) Power output: 3 kW(average); 100 kW (peak) PRF: 774 pps Accuracy: 150 m (range), 0.35 degrees azimuth On/Off time: unknown Deploy/Stow Time Unknown
Detection Range: Pd+90%, 1m2 RCS: 207 km
Max Range: 322 km
NOTES: IOC 1978. The primary aerostat mission is to provide radar data in support of other federal agencies involved in the nation's drug interdiction program.
