| General data: | |
|---|---|
| Type: Maritime Patrol Aircraft (MPA) | Crew: 10 |
| Min Speed: 180 kt | Max Speed: 520 kt |
| Wingspan: 37.6 m | Height: 12.8 m |
| Length: 39.5 m | Max Payload: 19830 kg |
| Empty Weight: 46606 kg | Max Weight: 77565 kg |
| Operator: Navy | Commissioned: 2024 |
| Propulsion: 2x CFM56-7B27A |
| Sensors / EW: |
|---|
| MX-20 Hi-Mag [FLIR] - (Group, MX-20) Infrared Infrared, Surveillance Camera Max Range: 55.6 km |
| MX-20 3-CCD [CCD] - (Group, MX-20) Visual LLTV, Surveillance Camera Max Range: 55.6 km |
| MX-20 1-CCD [CCD] - (Group, MX-20) Visual LLTV, Surveillance Camera Max Range: 55.6 km |
| MX-20 [Laser Rangefinder] - (Group, MX-20) Laser Rangefinder Laser Rangefinder Max Range: 0 km |
| AN/APY-10 - (Heavily modified AN/APS-137) Radar Radar, Surface Search, Long-Range Max Range: 370.4 km |
| AN/ALQ-213 MAWS - (Heavily modified AN/APS-137) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
| AN/ALQ-240(V)1 - (P-8A) ESM ELINT Max Range: 926 km |
| AN/AAQ-24(V) DIRCM - (Assoc w AN/AAR-54, LAIRCM) ECM IRCM Max Range: 0 km |
| AN/AAR-54 - (Assoc w AN/AAR-54, LAIRCM) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
| Weapons / Loadouts: |
|---|
| Mk54 LHT Mod 0 -
(2004) Torpedo Subsurface Max: 7.4 km. |
| AN/SSQ-77B VLAD -
(1994, A-Size, 99 Chn, 152/305m, 1/4/8hrs) Sonobuoy |

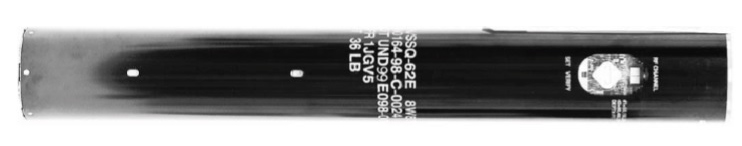

| AN/SSQ-62E DICASS -
(2004, A-Size, 86 Chn, 15/27/45/91/121/457m) Sonobuoy |

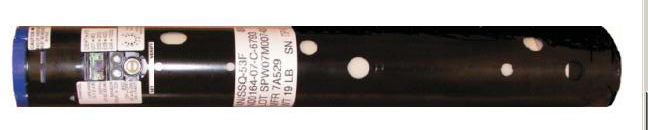

| AN/SSQ-53F DIFAR -
(2002, A-Size, 99 Chn, 27/60/121/304m, 0.5/1/2/4/8hrs) Sonobuoy |
