General data: | |
---|---|
Type: Fighter | Crew: 2 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 14.7 m | Height: 5.9 m |
Length: 21.9 m | Max Payload: 8000 kg |
Empty Weight: 16380 kg | Max Weight: 30450 kg |
Operator: Air Force | Commissioned: 2012 |
Propulsion: 2x WS-10B |
Sensors / EW: |
---|
China Type 1474 - (J-11B) Radar Radar, FCR, Air-to-Air & Air-to-Surface, Long-Range Max Range: 296.3 km |
Generic IRST - (3rd Gen Imaging) Infrared IRST, Imaging Infrared Search and Track Max Range: 185.2 km |
KG-700 (DECM, Defensive ECM - ECM) - (1990s) ECM DECM, Defensive ECM Max Range: 0 km |
SPO-29 Pastel [L-150] - (1990s) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Generic MAWS - (1990s) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
Generic Laser Rangefinder - (Anti-Air & Surface) Laser Rangefinder Laser Rangefinder Max Range: 7.4 km |
Weapons / Loadouts: |
---|
PL-8B [Python 3] -
(AAM) Guided Weapon Air Max: 14.8 km. |
CH-AA-7 Adze [PL-12] -
(2004) Guided Weapon Air Max: 92.6 km. |
250kg GPB -
(Generic) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
500kg GPB -
(Generic) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
S-8KO 80mm Rocket [HEAT] -
(1985) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |

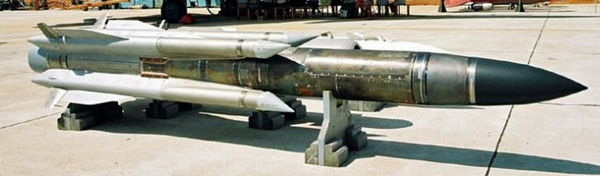

AS-17 Krypton C [Kh-31P, ARM] -
Guided Weapon Surface Max: 111.1 km. Land Max: 111.1 km. |
S-13B 122mm Rocket [Penetrator] -
(1984) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
