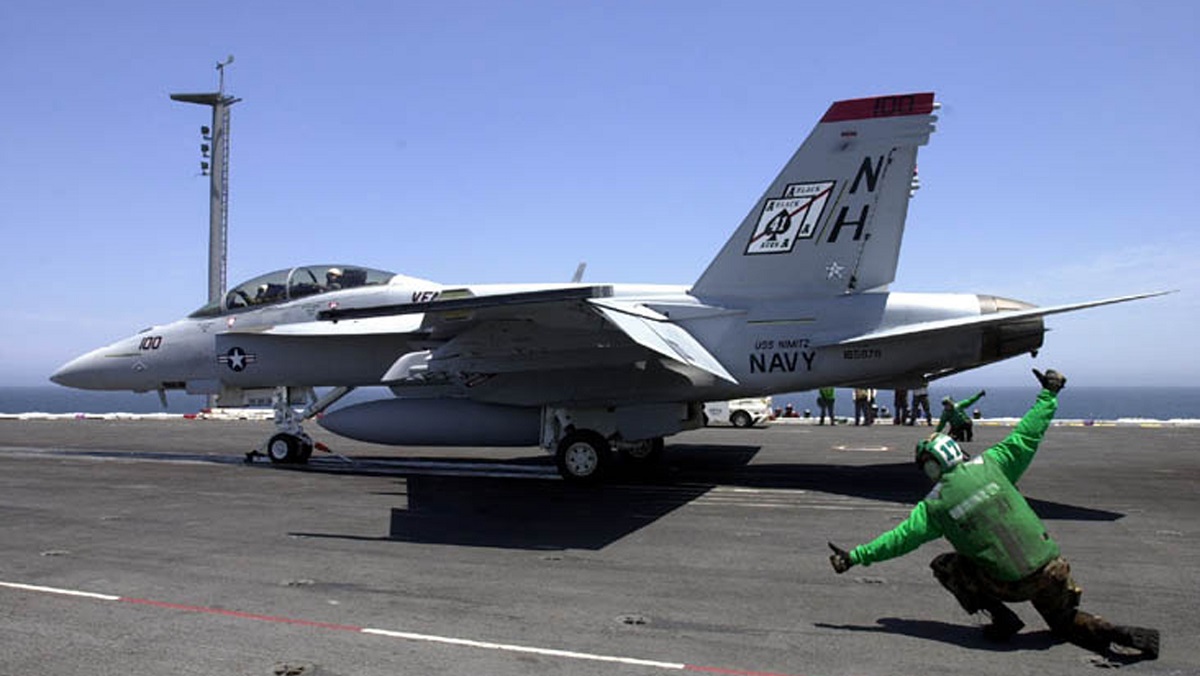

General data: | |
---|---|
Type: Multirole (Fighter/Attack) | Crew: 2 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 13.6 m | Height: 4.88 m |
Length: 18.3 m | Max Payload: 8050 kg |
Empty Weight: 13880 kg | Max Weight: 29937 kg |
Operator: Navy | Commissioned: 2002 |
Propulsion: 2x F414-GE-400 |
Sensors / EW: |
---|
AN/APG-73 - Radar Radar, FCR, Air-to-Air & Air-to-Surface, Medium-Range Max Range: 148.2 km |
AN/ALQ-165 ASPJ - ECM DECM, Defensive ECM Max Range: 0 km |
AN/ALR-67(V)3 - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Weapons / Loadouts: |
---|
480 USG Drop Tank -
Drop Tank |
AIM-120C AMRAAM P3I.1 -
(1999) Guided Weapon Air Max: 50 km. |
AIM-9M Sidewinder -
(1984) Guided Weapon Air Max: 18.5 km. |
GBU-31(V)2/B JDAM [Mk84] -
(USN, 2000) Guided Weapon Land Max: 24.1 km. |
AN/AAR-55 NAVFLIR Pod [FLIR] -
Sensor Pod |
AN/AAS-46 TFLIR Pod [FLIR + LRMTS, 40k ft] -
Sensor Pod |
AGM-65F Maverick IR -
(1990) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
Mk82 500lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk83 1000lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk84 2000lb LDGP -
(1955) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
GBU-10E/B Paveway II LGB [Mk84] -
(USAF) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
ADM-141C TALD [Active RF] -
(1999) Decoy (Vehicle) Surface Max: 296.3 km. Land Max: 296.3 km. |
AGM-84G Harpoon ICR -
(1998) Guided Weapon Surface Max: 138.9 km. |
AGM-88C HARM -
(1994) Guided Weapon Surface Max: 129.6 km. Land Max: 129.6 km. |
GBU-12D/B Paveway II LGB [Mk82] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
GBU-16B/B Paveway II LGB [Mk83] -
(USN) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
Generic Buddy Store -
Buddy Store |
GBU-24E/B Paveway III GPS/LGB [BLU-109A/B] -
(USN, 2001) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
AN/ASD-12 SHARP Pod [EO + IR + SAR] -
(ATARS) Sensor Pod |
GBU-24B/B Paveway III LGB [BLU-109A/B] -
(USN) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
GBU-31(V)4/B JDAM [BLU-109A/B] -
(USN) Guided Weapon Land Max: 24.1 km. |
AGM-84K SLAMER-ATA -
(2003) Guided Weapon Surface Max: 277.8 km. Land Max: 277.8 km. |
AN/AWW-13 Datalink Pod -
Sensor Pod |
AGM-154A JSOW [145 x BLU-97/B Dual Purpose] -
(2000) Guided Weapon Land Max: 116.7 km. |
GBU-24D/B Paveway III LGB [BLU-116/B] -
(USN, 2001, First delivered 1999) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
GBU-10J/B Paveway II LGB [BLU-109/B] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
ADM-141A TALD [Active RF] -
(1988) Decoy (Vehicle) Surface Max: 74.1 km. Land Max: 74.1 km. |
CBU-59/B APAM [717 x BLU-77/B Dual-Purpose Bomblets] -
(Mk7 Dispenser) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
CBU-78/B GATOR [45 x BLU-91/B Bomblets + 15 x BLU-92/B Mines] -
(Mk7 Dispenser) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk20 Rockeye II CB [247 x Mk118 Dual Purpose Bomblets] -
(1969, Mk7 Dispenser) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mine [Mk62 Quickstrike Mk82] -
(1982) Bottom Mine |
Mine [Mk63 Quickstrike Mk83] -
(1982) Bottom Mine |
Mine [Mk65 Mod 0 Quickstrike 2000lb] -
(1984, 90m max depth) Bottom Mine |
Mk82 500lb Snake Eye -
(USN: 1967, USAF: 1970, Retarded) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
B61 Tactical/Strategic Bomb [340kT Nuclear] -
(1968) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
330 USG Drop Tank -
Drop Tank |
AN/AAR-50 TINS Pod [FLIR] -
Sensor Pod |
AN/ASQ-173 LST/SCAM Pod [EO] -
Sensor Pod |
