| General data: | |
|---|---|
| Type: Attack | Crew: 2 |
| Min Speed: 350 kt | Max Speed: 750 kt |
| Wingspan: 17.6 m | Height: 6.2 m |
| Length: 24.6 m | Max Payload: 8100 kg |
| Empty Weight: 22320 kg | Max Weight: 39570 kg |
| Operator: Navy | Commissioned: 1993 |
| Propulsion: 2x AL-21F-3A |
| Sensors / EW: |
|---|
| Drop Kick [RPO Orion-A] - (Su-24M) Radar Radar, FCR, Air-to-Surface, Medium-Range Max Range: 148.2 km |
| L-082 Mak-UL - (BKO-2 Karpaty EW Suite) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
| SPS-162 Geran-F [L-102] - (Su-24M, BKO-2 Karpaty EW Suite) ECM DECM, Defensive ECM Max Range: 0 km |
| Laser Designator [Kaira-24M] - (Su-24M) Laser Designator Laser Target Designator & Ranger (LTD/R) Max Range: 18.5 km |
| Bomb Sight [Kaira-24M, LLTV] - (Su-24M) Visual Visual, Bomb Sight Max Range: 3.7 km |
| SPO-15 Beryoza [L-006] - (Su-24M) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| TFR [Relyef] - (Su-24M) Radar TFR, Terrain Following Radar Max Range: 3.7 km |
| Weapons / Loadouts: |
|---|
| FAB-250M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| OFAB-100-120 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| 3000 liter Drop Tank -
Drop Tank |
| AA-8 Aphid [R-60M] -
(1983) Guided Weapon Air Max: 9.3 km. |
| AS-10 Karen [Kh-25L] -
(1974, Laser) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| KAB-500L LGB -
(1979) Guided Weapon Surface Max: 9 km. Land Max: 9 km. |
| KAB-500Kr TV/EO -
(1984) Guided Weapon Surface Max: 9 km. Land Max: 9 km. |
| AS-11 Kilter [Kh-58, ARM] -
(1983) Guided Weapon Surface Max: 111.1 km. Land Max: 111.1 km. |
| L-080 Fantasmagoria-A [Emitter Locator] -
(AS-11/17) Sensor Pod |
| APK-9 Datalink Pod -
Sensor Pod |
| AS-13 Kingbolt [Kh-59] -
(1985) Guided Weapon Surface Max: 64.8 km. Land Max: 64.8 km. |
| AS-12 Kegler [Kh-25MP, ARM] -
(1975) Guided Weapon Surface Max: 37 km. Land Max: 37 km. |
| L-086 Viyuga [Emitter Locator] -
(AS-11/12) Sensor Pod |
| RBK-500-BetAB CB [12 x BetAB-20 Anti-Runway Penetrator Bomblets] -
Bomb Land Max: 1.9 km. |
| RBK-250-PTAB CB [30 x PTAB-2.5 Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-14 Kedge [Kh-29L] -
(1981) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| RBK-500-ZAB [117 x ZAB-2.5SM Incendiary] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| RBK-500-PTAB [268 x PTAB-1M Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-100M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-250M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-500M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| KAB-1500Kr TV/EO -
(1996) Guided Weapon Surface Max: 12 km. Land Max: 12 km. |
| KAB-1500L-F LGB -
(1989) Guided Weapon Surface Max: 12 km. Land Max: 12 km. |
| KAB-1500L-Pr LGB [Penetrator] -
(1989) Guided Weapon Surface Max: 12 km. Land Max: 12 km. |
| FAB-1500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| S-5K 57mm Rocket -
(OOS ~2014, Superseded by S-8) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| S-8KO 80mm Rocket [HEAT] -
(1985) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| S-13B 122mm Rocket [Penetrator] -
(1984) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| S-24B 240mm Rocket -
(V-24A Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| AS-17 Krypton C [Kh-31P, ARM] -
Guided Weapon Surface Max: 111.1 km. Land Max: 111.1 km. |

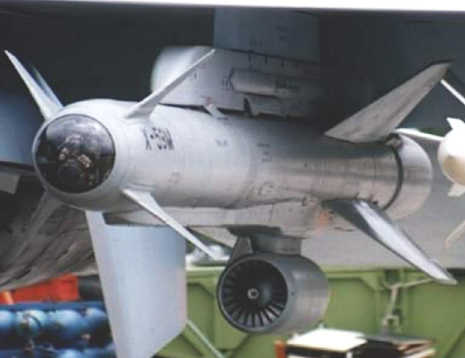

| AS-18 Kazoo A [Kh-59M] -
(1993) Guided Weapon Surface Max: 111.1 km. Land Max: 111.1 km. |
| AS-14 Kedge [Kh-29T] -
(1985) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| S-25O 266mm Rocket -
(1980) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| OFAB-250-270 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| RN-28 Tactical Bomb [1kT Nuclear] -
(Russia, 8U49, Su-24) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
| RN-40 Tactical Bomb [30kT Nuclear] -
(Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
| KAB-1500Kr-Pr TV/EO [Penetrator] -
(1996) Guided Weapon Surface Max: 12 km. Land Max: 12 km. |
