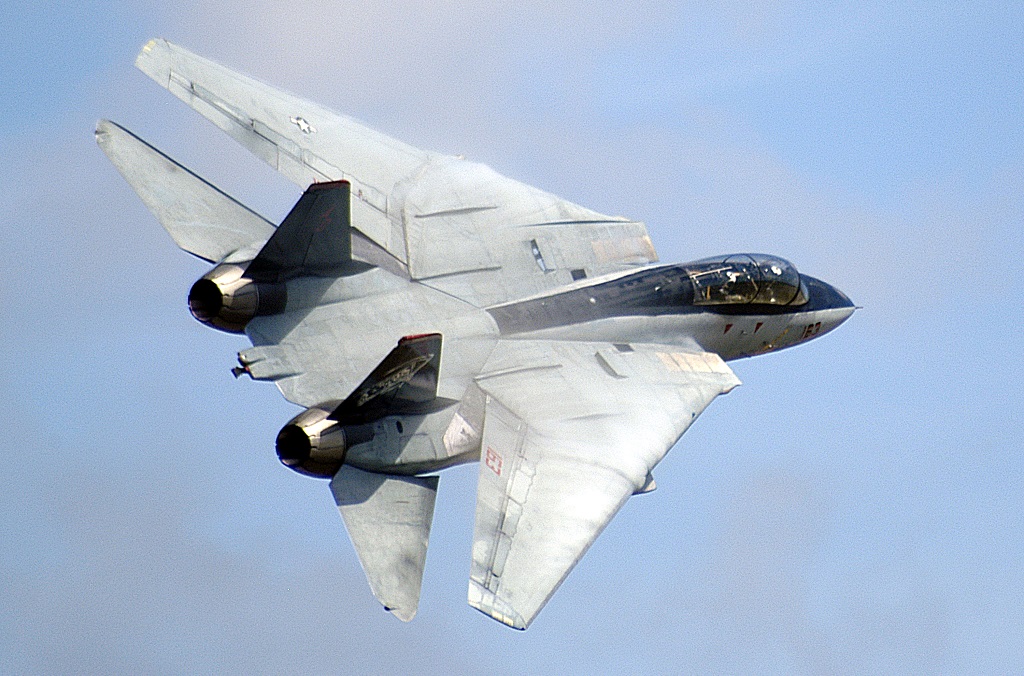

General data:
Type: Fighter Crew: 2
Min Speed: 350 kt Max Speed: 920 kt
Wingspan: 19.6 m Height: 4.9 m
Length: 19.2 m Max Payload: 5900 kg
Empty Weight: 19838 kg Max Weight: 33720 kg
Operator: Navy Commissioned: 2004
Propulsion: 2x F110-GE-400
Sensors / EW:
AN/AAS-42 - Infrared
IRST, Imaging Infrared Search and Track
Max Range: 185.2 km
AN/ALQ-165 ASPJ - ECM
DECM, Defensive ECM
Max Range: 0 km
AN/APG-71 - (LPI) Radar
Radar, FCR, Air-to-Air, Long-Range
Max Range: 333.4 km
AN/ALR-67(V)2 - (LPI) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/AXX-1 TCS - (LPI) Visual
Visual, Target Search, Slaved Tracking and Identification TV Camera
Max Range: 185.2 km
Weapons / Loadouts:
GBU-24D/B Paveway III LGB [BLU-116/B] - (USN, 2001, First delivered 1999) Guided Weapon
Surface Max: 14.8 km. Land Max: 14.8 km.
AN/AAQ-25 LANTIRN Pod [FLIR + LRMTS, 40k ft] - (1998, F-14) Sensor Pod
267 USG Drop Tank - Drop Tank
AIM-9M Sidewinder - (1984) Guided Weapon
Air Max: 18.5 km.
GBU-24E/B Paveway III GPS/LGB [BLU-109A/B] - (USN, 2001) Guided Weapon
Surface Max: 14.8 km. Land Max: 14.8 km.
AIM-7P Sparrow III - (1994) Guided Weapon
Air Max: 70.4 km.
AIM-54C Phoenix - (1985-2004, Mk47 Mod 1 Smokeless Motor) Guided Weapon
Air Max: 184.1 km.
GBU-24B/B Paveway III LGB [BLU-109A/B] - (USN) Guided Weapon
Surface Max: 14.8 km. Land Max: 14.8 km.
GBU-31(V)4/B JDAM [BLU-109A/B] - (USN) Guided Weapon
Land Max: 24.1 km.
GBU-12D/B Paveway II LGB [Mk82] - Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
GBU-16B/B Paveway II LGB [Mk83] - (USN) Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
GBU-10E/B Paveway II LGB [Mk84] - (USAF) Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
Mk82 500lb LDGP - (1954) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk83 1000lb LDGP - (1954) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk84 2000lb LDGP - (1955) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
ADM-141C TALD [Active RF] - (1999) Decoy (Vehicle)
Surface Max: 296.3 km. Land Max: 296.3 km.
LA-610 TARPS-DI Pod [IR + EO] - (2002, Digital) Sensor Pod
GBU-31(V)2/B JDAM [Mk84] - (USN, 2000) Guided Weapon
Land Max: 24.1 km.
GBU-32(V)2/B JDAM [Mk83] - (USN, 2001) Guided Weapon
Land Max: 24.1 km.
GBU-10J/B Paveway II LGB [BLU-109/B] - Guided Weapon
Surface Max: 7.4 km. Land Max: 7.4 km.
Mk82 500lb Snake Eye - (USN: 1967, USAF: 1970, Retarded) Bomb
Surface Max: 1.9 km. Land Max: 1.9 km.
