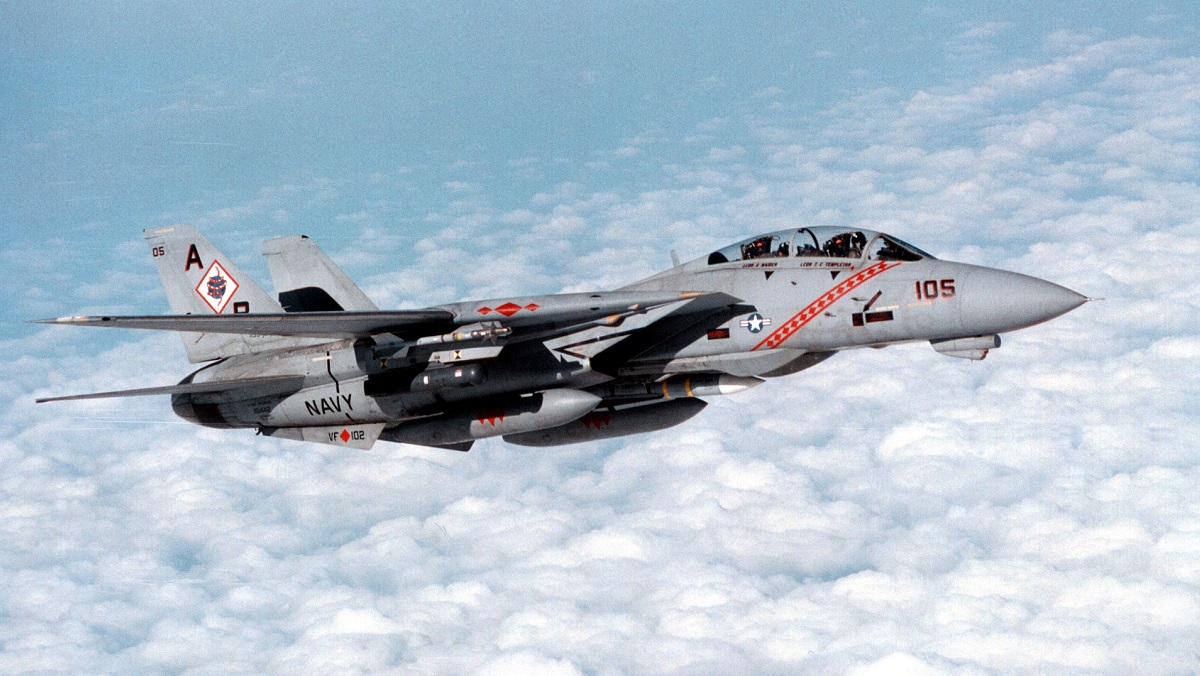

General data: | |
---|---|
Type: Fighter | Crew: 2 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 19.6 m | Height: 4.9 m |
Length: 19.2 m | Max Payload: 5900 kg |
Empty Weight: 18200 kg | Max Weight: 32098 kg |
Operator: Navy | Commissioned: 1998 |
Propulsion: 2x F110-GE-400 |
Sensors / EW: |
---|
AN/ALQ-126A - ECM DECM, Defensive ECM Max Range: 0 km |
AN/ALR-67(V)2 - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
AN/AWG-9 - Radar Radar, FCR, Air-to-Air, Long-Range Max Range: 333.4 km |
AN/AXX-1 TCS - Visual Visual, Target Search, Slaved Tracking and Identification TV Camera Max Range: 185.2 km |
Weapons / Loadouts: |
---|
AIM-7P Sparrow III -
(1994) Guided Weapon Air Max: 70.4 km. |
GBU-24D/B Paveway III LGB [BLU-116/B] -
(USN, 2001, First delivered 1999) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
AN/AAQ-25 LANTIRN Pod [FLIR + LRMTS, 40k ft] -
(1998, F-14) Sensor Pod |
267 USG Drop Tank -
Drop Tank |
AIM-9M Sidewinder -
(1984) Guided Weapon Air Max: 18.5 km. |
Mk82 500lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk83 1000lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk84 2000lb LDGP -
(1955) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
GBU-12D/B Paveway II LGB [Mk82] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
GBU-16B/B Paveway II LGB [Mk83] -
(USN) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
GBU-10E/B Paveway II LGB [Mk84] -
(USAF) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
LA-610 TARPS-DI Pod [IR + EO] -
(2002, Digital) Sensor Pod |
AN/ALQ-167 Bullwinkle DECM Pod -
Sensor Pod |
GBU-24B/B Paveway III LGB [BLU-109A/B] -
(USN) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
ADM-141C TALD [Active RF] -
(1999) Decoy (Vehicle) Surface Max: 296.3 km. Land Max: 296.3 km. |
GBU-10J/B Paveway II LGB [BLU-109/B] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
ADM-141A TALD [Active RF] -
(1988) Decoy (Vehicle) Surface Max: 74.1 km. Land Max: 74.1 km. |
AIM-54C Phoenix -
(1985-2004, Mk47 Mod 1 Smokeless Motor) Guided Weapon Air Max: 184.1 km. |
Mk82 500lb Snake Eye -
(USN: 1967, USAF: 1970, Retarded) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
