General data: | |
---|---|
Type: Fighter | Crew: 2 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 19.6 m | Height: 4.9 m |
Length: 19.1 m | Max Payload: 5900 kg |
Empty Weight: 18110 kg | Max Weight: 32098 kg |
Operator: Air Force | Commissioned: 1990 |
Propulsion: 2x TF30-PW-412A |
Sensors / EW: |
---|
AN/ALQ-100 - ECM DECM, Defensive ECM Max Range: 0 km |
AN/AWG-9 - Radar Radar, FCR, Air-to-Air, Long-Range Max Range: 333.4 km |
AN/ALR-50 Charger Blue - (Navy) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
AN/ALR-45 Compass Tie - (Navy) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Weapons / Loadouts: |
---|

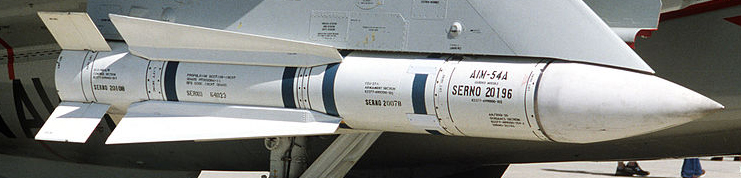

AIM-54A Phoenix -
(1974, Mk60 Mod 0 Motor) Guided Weapon Air Max: 135 km. |
267 USG Drop Tank -
Drop Tank |
AIM-9N Sidewinder -
(1975, AIM-9J-1) Guided Weapon Air Max: 14.8 km. |

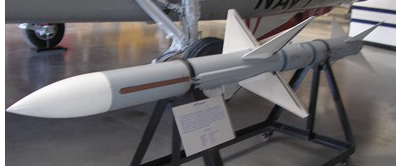

AIM-7E4 Sparrow III -
(1972) Guided Weapon Air Max: 29.6 km. |

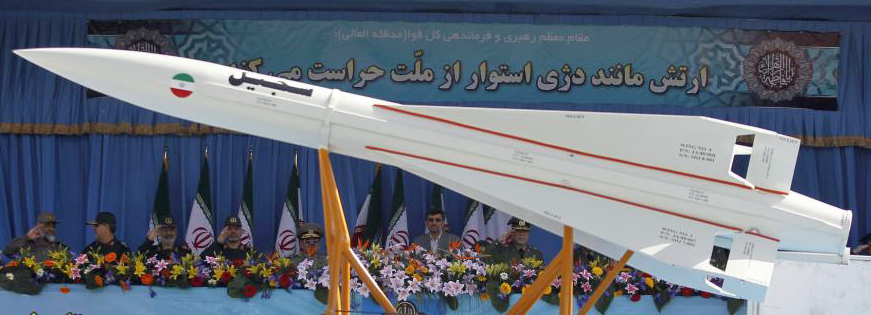

AIM-23C I-HAWK [Sejil] -
(1987) Guided Weapon Air Max: 92.6 km. |
Yasser [MIM-23C/M117 Mod.] -
(1987?) Guided Weapon Land Max: 24.1 km. |
