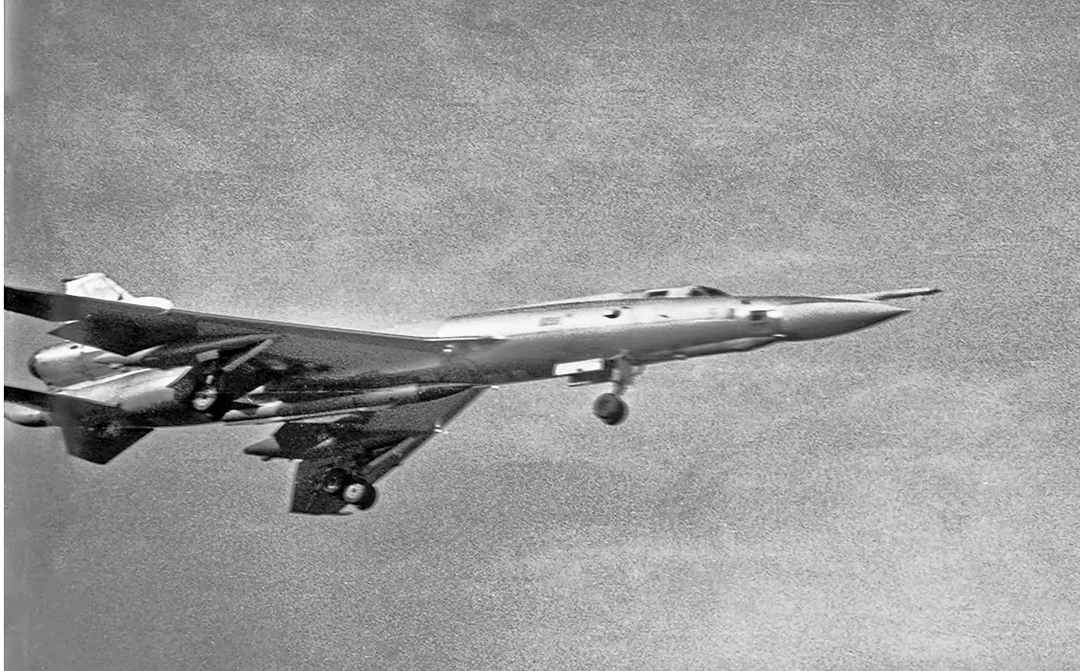

| General data: | |
|---|---|
| Type: Bomber | Crew: 3 |
| Min Speed: 400 kt | Max Speed: 750 kt |
| Wingspan: 23.6 m | Height: 10 m |
| Length: 41.6 m | Max Payload: 12000 kg |
| Empty Weight: 47300 kg | Max Weight: 94000 kg |
| Operator: Long Range Aviation [DA] | Commissioned: 1980 |
| Propulsion: 2x RD-7M-2 |
| Sensors / EW: |
|---|
| SPO-3 Sirena-3 - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Bee Hind [PRS-3 Argon-2] - (Tu-22) Radar TWR, Tail Warning Radar & Tail Gun Director Max Range: 18.5 km |
| Bomb Sight [OPB-15V] - (Tu-22) Visual Visual, Bomb Sight Max Range: 3.7 km |
| TP-1 Tail Gun TV Sighting System - (Tu-22) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
| SPS-3 - (Tu-22) ECM DECM, Defensive ECM Max Range: 0 km |
| Short Horn [PN Rubin] - (Tu-22, AS-4) Radar Radar, Surface Search, Long-Range Max Range: 444.5 km |
| Emitter Location System [Kurs-N] - (Tu-22KPD, AS-4) ESM Emitter Locator (For ARM Missiles) Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|

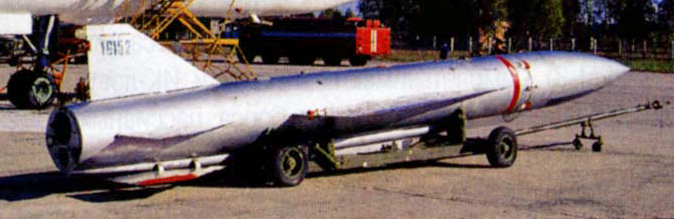

| AS-4 Kitchen A Mod 2 [Kh-22M ASM] -
(1976, Tu-22M-2, Tu-22KD) Guided Weapon Surface Max: 398.2 km. |
| AS-4 Kitchen A Mod 2 [Kh-22M ASM, 350kT Nuclear] -
(1976, Tu-22M-2, Tu-22KD) Guided Weapon Surface Max: 398.2 km. |
| OFAB-100-120 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-250M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-1500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-3000M-46 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-4 Kitchen B Mod 2 [Kh-22MA INS+TERCOM, 350kT Nuclear] -
(1976, Tu-22M-2, Tu-22KD) Guided Weapon Land Max: 555.6 km. |
| AS-4 Kitchen B Mod 2 [Kh-22MA INS+TERCOM] -
(1976, Tu-22M-2, Tu-22KD) Guided Weapon Land Max: 555.6 km. |
| OFAB-250-270 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-4 Kitchen C Mod 2 [Kh-22MP ARM, 350kT Nuclear] -
(1980, Tu-22KP/KPD, Limited Service) Guided Weapon Surface Max: 398.2 km. Land Max: 398.2 km. |
| AS-4 Kitchen C Mod 2 [Kh-22MP ARM] -
(1980, Tu-22KP/KPD, Limited Service) Guided Weapon Surface Max: 398.2 km. Land Max: 398.2 km. |
| RN-40 Tactical Bomb [30kT Nuclear] -
(Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
| RN-42 Strategic Bomb [200kT Nuclear] -
(Russia) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
| Mine [Bottom, Acoustic Broad-Band Fuze] -
(Simple) Bottom Mine |
