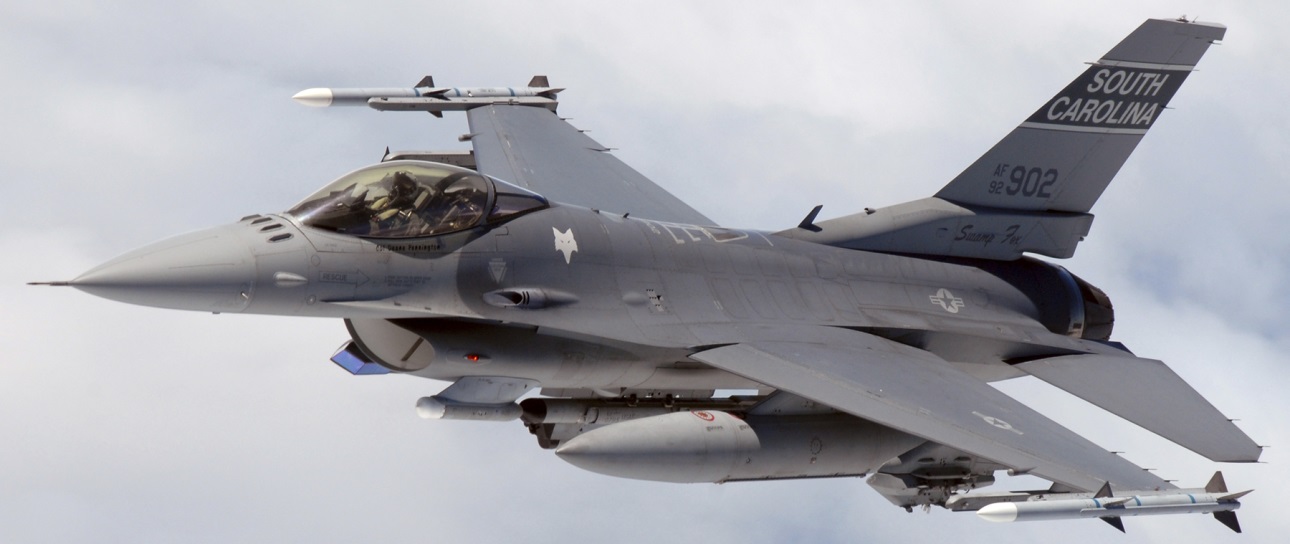

General data: | |
---|---|
Type: Multirole (Fighter/Attack) | Crew: 1 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 9.5 m | Height: 4.8 m |
Length: 14.5 m | Max Payload: 6894 kg |
Empty Weight: 8280 kg | Max Weight: 19200 kg |
Operator: Air Force | Commissioned: 1992 |
Propulsion: 1x F110-GE-100 |
Sensors / EW: |
---|
AN/ALR-74 - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
AN/APG-68(V)1 - Radar Radar, FCR, Air-to-Air & Air-to-Surface, Medium-Range Max Range: 111.1 km |
Weapons / Loadouts: |
---|
AIM-120A AMRAAM -
(1992) Guided Weapon Air Max: 50 km. |
370 USG Drop Tank -
Drop Tank |
AIM-9M Sidewinder -
(1984) Guided Weapon Air Max: 18.5 km. |
AN/ALQ-131 DECM Pod -
(1983?) Sensor Pod |
AN/AAQ-14 LANTIRN Pod [FLIR + LRMTS, 12k ft] -
Sensor Pod |
AN/AAQ-13 LANTIRN Pod [FLIR + TFR] -
Sensor Pod |
GBU-12D/B Paveway II LGB [Mk82] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
GBU-10E/B Paveway II LGB [Mk84] -
(USAF) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
AGM-65D Maverick IR -
(1984) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
AGM-65G Maverick IR -
(1991) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
Mk82 500lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
Mk84 2000lb LDGP -
(1955) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
AGM-65B Maverick EO -
(1976) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
GBU-24/B Paveway III LGB [Mk84] -
(USAF, 1988) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
CBU-52/B CB [217 x BLU-61/B Frag Bomblets] -
(1972, SUU-30/B) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
CBU-71A/B CB [650 x BLU-86/B Frag Bomblets] -
(SUU-30A/B) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
CBU-89/B GATOR [45 x BLU-91/B Bomblets + 15 x BLU-92/B Mines] -
(SUU-64/B) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
CBU-87/B CEM [202 x BLU-97/B Dual-Purpose Bomblets] -
(1987, SUU-65/B) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
GBU-24A/B Paveway III LGB [BLU-109/B] -
(USAF) Guided Weapon Surface Max: 14.8 km. Land Max: 14.8 km. |
Mk20 Rockeye II CB [247 x Mk118 Dual Purpose Bomblets] -
(1969, Mk7 Dispenser) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
300 USG Drop Tank -
Drop Tank |
GBU-10J/B Paveway II LGB [BLU-109/B] -
Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
AGM-88B HARM -
(1990) Guided Weapon Surface Max: 129.6 km. Land Max: 129.6 km. |
