| General data: | |
|---|---|

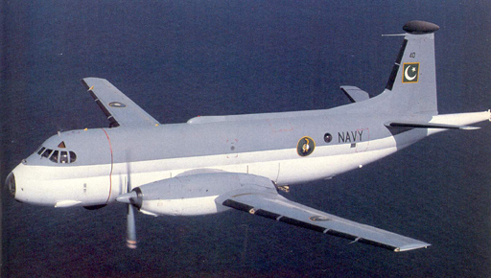

| Type: Maritime Patrol Aircraft (MPA) | Crew: 12 |
| Min Speed: 170 kt | Max Speed: 350 kt |
| Wingspan: 37.4 m | Height: 10.9 m |
| Length: 31.6 m | Max Payload: 3500 kg |
| Empty Weight: 25700 kg | Max Weight: 46200 kg |
| Operator: Navy | Commissioned: 1990 |
| Propulsion: 2x Tyne RTy.20 Mk.21 |
| Sensors / EW: |
|---|
| DRAA-10A Iguane - (TMV-118) Radar Radar, Surface Search, Long-Range Max Range: 370.4 km |
| DHAX 1 - (Atlantique 1) MAD MAD Max Range: 1.9 km |
| Generic FLIR - (DEPRECATED - 1st Gen, Surveillance & Periscope Search) Infrared Infrared, Surveillance Camera Max Range: 27.8 km |
| DR 2000H Mk1 - (Small MPA, Helicopter) ESM ELINT Max Range: 926 km |
| Weapons / Loadouts: |
|---|
| Mk46 LWT Mod 2 -
(1972) Torpedo Subsurface Max: 5.6 km. |
| DSTV 4L LOFAR [TSM 8010] -
(1972, A-Size, MSR 810, 31 Chn, 20/300m, 1/3/8 Hrs) Sonobuoy |
| AN/SSQ-47 Julie Active Range-Only -
(1967-1995, SSQ-522, SSQ-947, HQS-31, A-Size, 12 Chn, 18/243m, 30min, Ranger Buoy, Exported) Sonobuoy |
