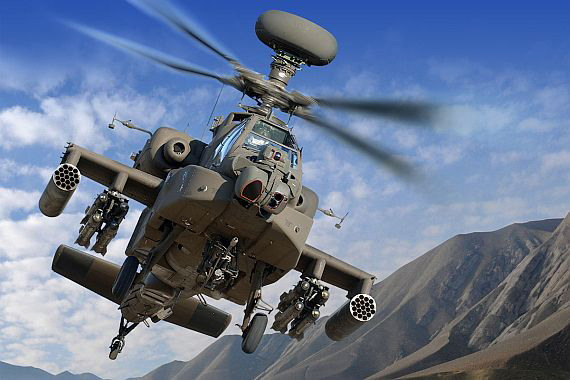

General data:
Type: Attack Crew: 2
Min Speed: 55 kt Max Speed: 160 kt
Wingspan: 4.9 m Height: 4.9 m
Length: 14.96 m Max Payload: 0 kg
Empty Weight: 5360 kg Max Weight: 10450 kg
Operator: Army Commissioned: 2012
Propulsion: 2x T700-GE-701D
Sensors / EW:
AN/ALQ-212 ATIRCM - (Assoc w AN/AAR-57) ECM
Max Range: 0 km
AN/AVR-2A(V) - (Assoc w AN/AAR-57) ESM
LWR, Laser Warning Receiver
Max Range: 18.5 km
AN/APG-78 Longbow MMR - (Assoc w AN/AAR-57) Radar
Radar, FCR, Air-to-Air & Air-to-Surface, Short-Range
Max Range: 8 km
AN/AAQ-11 PNVS - (Assoc w AN/ASQ-170) Infrared
Infrared, Weapon Director & Target Search, Tracking and Identification Camera
Max Range: 55.6 km
AN/ALQ-136(V)5 - (Assoc w AN/ASQ-170) ECM
DECM, Defensive ECM
Max Range: 0 km
AN/APR-48A - (Assoc w AN/ASQ-170) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/AAR-57 CMWS - (Common Missile Warning System) Infrared
MAWS, Missile Approach Warning System
Max Range: 9.3 km
ASQ-170 TADS/PNVS - (Common Missile Warning System) Visual
LLTV, Weapon Director & Target Search, Tracking and Identification
Max Range: 55.6 km
Generic Laser Designator - (Surface Only) Laser Designator
Laser Target Designator & Ranger (LTD/R)
Max Range: 18.5 km
Weapons / Loadouts:
230 USG Drop Tank - Drop Tank
AGM-114K Hellfire II - Guided Weapon
Surface Max: 9.3 km. Land Max: 9.3 km.
AIM-92E Stinger ATAS RPM Blk I - (1998) Guided Weapon
Air Max: 5.6 km.
HYDRA 70mm Rocket - (Mk 66 Rocket, M229 Warhead, M423/7 Fuze) Rocket
Surface Max: 3.7 km. Land Max: 3.7 km.
AGM-114L Hellfire II - Guided Weapon
Air Max: 9.3 km. Surface Max: 9.3 km. Land Max: 9.3 km.
HYDRA APKWS II 70mm Rocket [WGU-59/B, Rotary Wing Launch] - (2012) Guided Weapon
Surface Max: 5 km. Land Max: 5 km.
