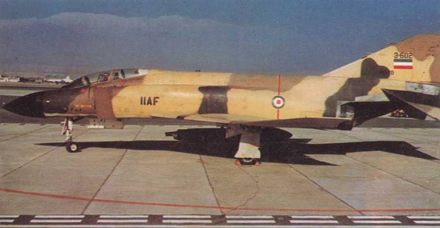

| General data: | |
|---|---|
| Type: Multirole (Fighter/Attack) | Crew: 2 |
| Min Speed: 350 kt | Max Speed: 920 kt |
| Wingspan: 11.7 m | Height: 5.02 m |
| Length: 19.2 m | Max Payload: 8000 kg |
| Empty Weight: 13245 kg | Max Weight: 27500 kg |
| Operator: Air Force | Commissioned: 1975 |
| Propulsion: 2x J79-GE-15 |
| Sensors / EW: |
|---|
| AN/APQ-109 - (F-4D) Radar Radar, FCR, Air-to-Air & Air-to-Surface, Medium-Range Max Range: 111.1 km |
| AN/APS-107 STARM Target Acquisition - (F-4D) ESM Emitter Locator (For ARM Missiles) Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|
| 370 USG Drop Tank -
Drop Tank |
| AIM-9N Sidewinder -
(1975, AIM-9J-1) Guided Weapon Air Max: 14.8 km. |
| AIM-7E Sparrow III -
(1969, AAM-N-6b) Guided Weapon Air Max: 29.6 km. |
| 600 USG Drop Tank -
Drop Tank |
| AGM-65A Maverick EO -
(1973) Guided Weapon Surface Max: 5.6 km. Land Max: 5.6 km. |
| AN/ALQ-101 DECM Pod -
Sensor Pod |
| AGM-78D Standard [ARM] -
(1975) Guided Weapon Surface Max: 92.6 km. Land Max: 92.6 km. |
| BL.755 No.1 CB [147 x GP Anti-Armor Bomblets] -
(1973) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| M117 750lb GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| Mk82 500lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| Mk84 2000lb LDGP -
(1955) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| Mk83 1000lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |

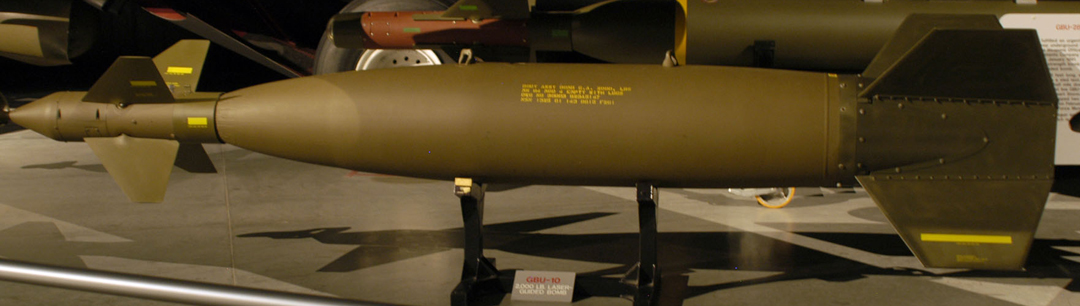

| GBU-10B/B Paveway I LGB [Mk84] -
(KMU-351C/B) Guided Weapon Surface Max: 7.4 km. Land Max: 7.4 km. |
| AN/AVQ-9 Pave Light Kit [EO + LRMTS, 12k ft] -
(F-4C/D Only, Zot Box) Sensor Pod |
| Mk82 500lb Snake Eye -
(USN: 1967, USAF: 1970, Retarded) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| BLU-27/B 750lb Incendiary Bomb -
(USAF) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| HYDRA 70mm Rocket -
(Mk 66 Rocket, M229 Warhead, M423/7 Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| AGM-78 Air Launched Standard -
(1980) Guided Weapon Surface Max: 92.6 km. Land Max: 92.6 km. |
