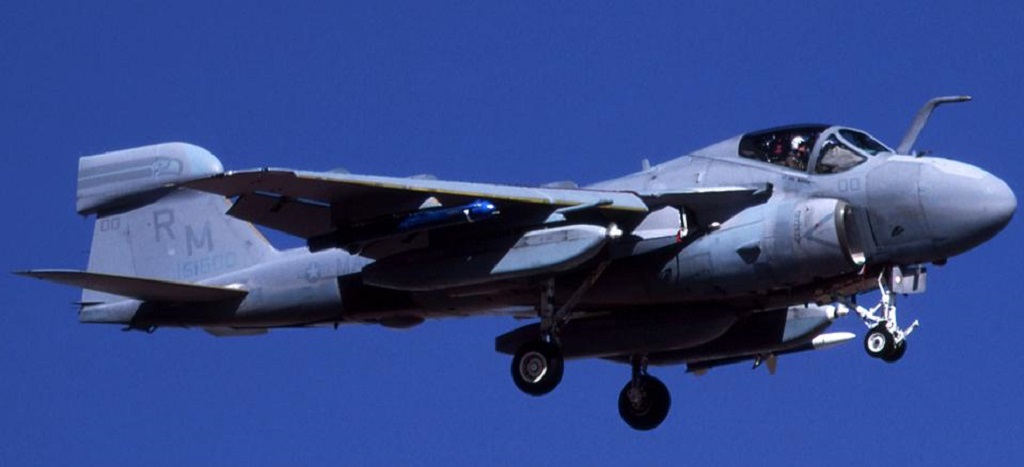

General data:
Type: Electronic Warfare Crew: 2
Min Speed: 300 kt Max Speed: 570 kt
Wingspan: 16.2 m Height: 4.8 m
Length: 16.7 m Max Payload: 15870 kg
Empty Weight: 12070 kg Max Weight: 27500 kg
Operator: Navy Commissioned: 1986
Propulsion: 2x J52-P-6
Sensors / EW:
AN/ALQ-51 - (Assoc w AN/ALQ-41, Deception Jammer) ECM
DECM, Defensive ECM
Max Range: 0 km
AN/ALQ-55 - (Assoc w AN/ALQ-41, Deception Jammer) ECM
Communications Jammer
Max Range: 0 km
AN/APN-153(V) - (Assoc w AN/ALQ-41, Deception Jammer) Radar
Radar, Weather and Navigation
Max Range: 74.1 km
AN/ALQ-41 - (Assoc w AN/ALQ-51, Track Breaker) ECM
DECM, Defensive ECM
Max Range: 0 km
AN/ALQ-86 - (Assoc w AN/ALQ-51, Track Breaker) ESM
ELINT
Max Range: 926 km
Weapons / Loadouts:
300 USG Drop Tank - Drop Tank
AN/ALQ-76 ECM Pod - Sensor Pod
AGM-45B Shrike [ARM] - (1975-1992) Guided Weapon
Surface Max: 46.3 km. Land Max: 46.3 km.
