| General data: | |
|---|---|
| Type: Fighter | Crew: 2 |
| Min Speed: 350 kt | Max Speed: 1350 kt |
| Wingspan: 13.5 m | Height: 6.2 m |
| Length: 22.7 m | Max Payload: 5000 kg |
| Empty Weight: 21825 kg | Max Weight: 46200 kg |
| Operator: Air Defence Troops [PVO] | Commissioned: 1989 |
| Propulsion: 2x D-30F6 | Decommissioned: 1991 |
| Sensors / EW: |
|---|
| IRST [8TP] - (MiG-31) Infrared IRST, Imaging Infrared Search and Track Max Range: 148.2 km |
| Flash Dance [N-007 Zaslon] - (MiG-31) Radar Radar, FCR, Air-to-Air, Long-Range Max Range: 314.8 km |
| SPS-171/172 Sorbtsiya [L-005] - (MiG-31) ECM DECM, Defensive ECM Max Range: 0 km |
| SPO-15 Beryoza [L-006] - (MiG-31) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|

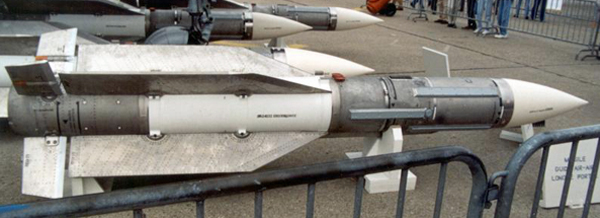

| AA-9 Amos [R-33, SARH] -
(1981, Izdeliye 410) Guided Weapon Air Max: 120 km. |
| 2500 liter Drop Tank -
Drop Tank |
| AA-8 Aphid [R-60M] -
(1983) Guided Weapon Air Max: 9.3 km. |
| AA-6 Acrid F [R-40TD1, IR] -
(1988) Guided Weapon Air Max: 83.3 km. |
