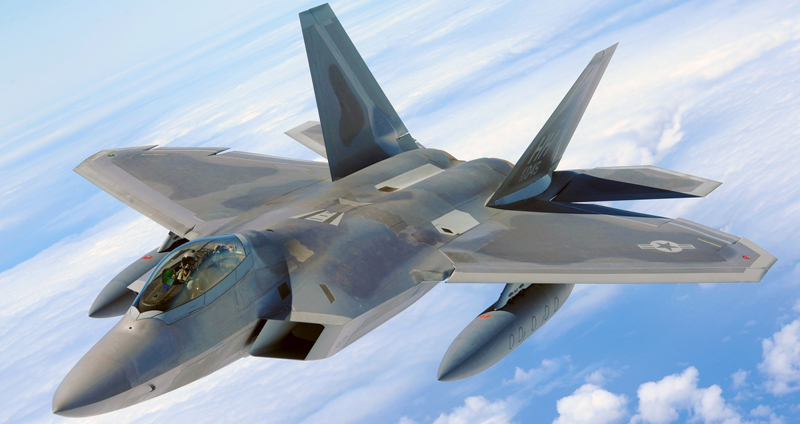

F-22A Raptor - 2019, Block 3.2B, No HMCS/HMD, AIM-120D & AIM-9X Blk III
| General data: | |
|---|---|
| Type: Multirole (Fighter/Attack) | Crew: 1 |
| Min Speed: 350 kt | Max Speed: 1000 kt |
| Wingspan: 13.6 m | Height: 5.08 m |
| Length: 18.9 m | Max Payload: 4500 kg |
| Empty Weight: 14365 kg | Max Weight: 38000 kg |
| Operator: Air Force | Commissioned: 2019 |
| Propulsion: 2x F119-PW-100 |
| Sensors / EW: |
|---|
| AN/ALR-94 - ESM ELINT Max Range: 926 km |
| AN/APG-77(V)1 AESA - (LPI) Radar Radar, FCR, Air-to-Air & Air-to-Surface, Long-Range Max Range: 407.4 km |
| AN/APG-77(V)1 OECM - (F-22, Similar to AN/APG-81 OECM) ECM OECM, Offensive ECM Max Range: 0 km |
| AN/AAR-56 PMAWS - (F-22) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
| Weapons / Loadouts: |
|---|
| 600 USG Drop Tank -
Drop Tank |
| AIM-9X-2 Sidewinder Blk II -
(2016) Guided Weapon Air Max: 25.9 km. |
| AIM-120D AMRAAM P3I.4 -
(2015, AIM-120C-8) Guided Weapon Air Max: 160 km. |
| GBU-32(V)1/B JDAM [Mk83] -
(USAF, 2006) Guided Weapon Land Max: 24.1 km. |
| GBU-39/B SDB -
(USAF, 2006) Guided Weapon Land Max: 111.1 km. |
| AIM-9X-3 Sidewinder Blk II+ -
(2019, Extended Range) Guided Weapon Air Max: 40.7 km. |
