| General data: | |
|---|---|

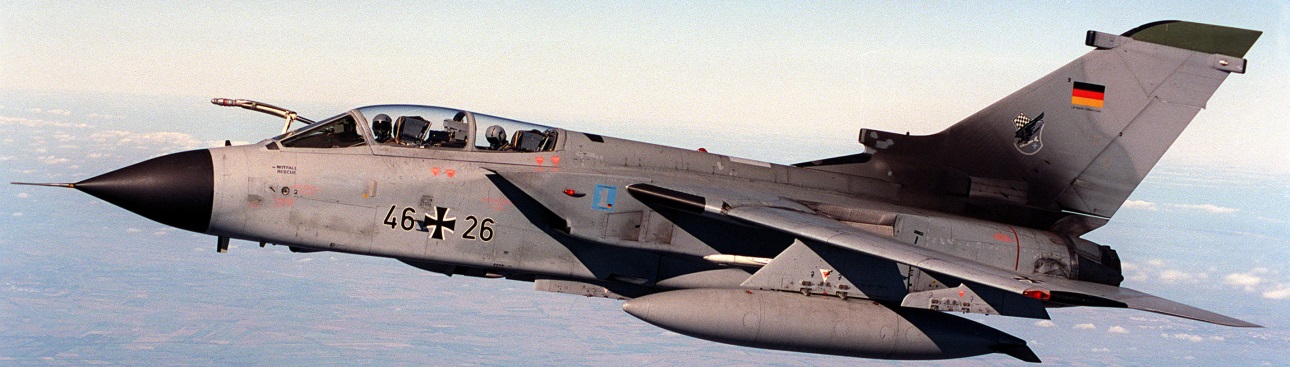

| Type: Wild Weasel | Crew: 2 |
| Min Speed: 350 kt | Max Speed: 920 kt |
| Wingspan: 13.9 m | Height: 5.95 m |
| Length: 16.7 m | Max Payload: 9000 kg |
| Empty Weight: 14090 kg | Max Weight: 28000 kg |
| Operator: Air Force | Commissioned: 1998 |
| Propulsion: 2x RB.199-34R Mk.105 |
| Sensors / EW: |
|---|
| Tornado ELS [Emitter Location System] - (Tornado ECR) ESM Emitter Locator (For ARM Missiles) Max Range: 222.2 km |
| Tornado Nose Radar (TNR) [TFR & GMR] - (Tornado ECR) Radar Radar, FCR, Air-to-Surface, Short-Range Max Range: 74.1 km |
| Generic FLIR - (DEPRECATED - 2nd Gen, Surveillance, 8x Magnification) Infrared Infrared, Surveillance Camera Max Range: 55.6 km |
| ERWE II - (Tornado MLU, Germany) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|
| AGM-88B HARM -
(1990) Guided Weapon Surface Max: 129.6 km. Land Max: 129.6 km. |
| BOZ-101 Chaff/Flare Pod -
Sensor Pod |
| AIM-9L Sidewinder -
(1980) Guided Weapon Air Max: 18.5 km. |
| Cerberus IV DECM Pod -
(1998) Sensor Pod |

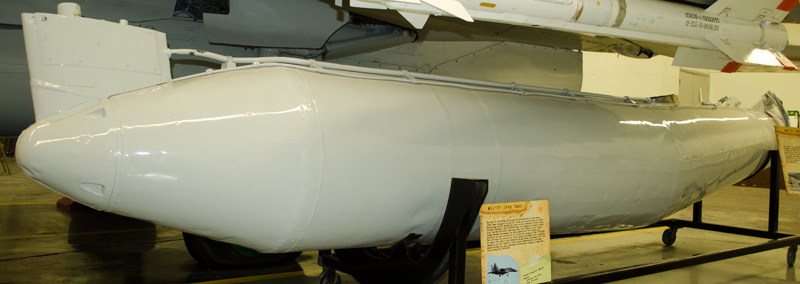

| 1500 liter Drop Tank -
Drop Tank |
