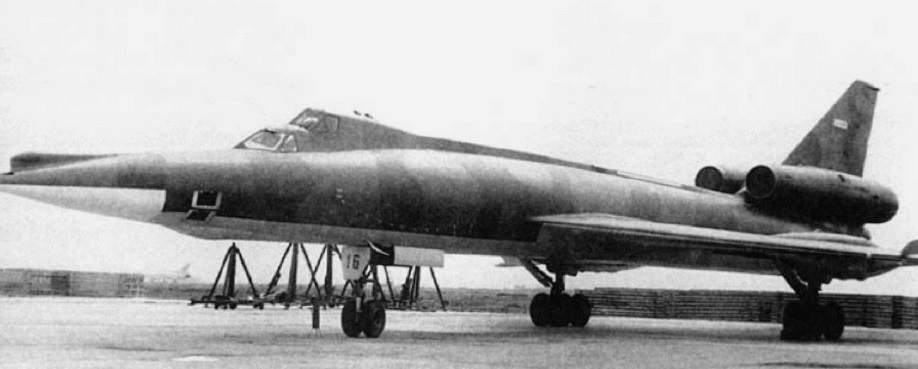

General data: | |
---|---|
Type: Trainer | Crew: 3 |
Min Speed: 400 kt | Max Speed: 750 kt |
Wingspan: 23.6 m | Height: 10 m |
Length: 41.6 m | Max Payload: 12000 kg |
Empty Weight: 47300 kg | Max Weight: 94000 kg |
Operator: Air Force | Commissioned: 1973 |
Propulsion: 2x RD-7M-2 | Decommissioned: 1998 |
Sensors / EW: |
---|
SPO-3 Sirena-3 - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Bee Hind [PRS-3 Argon-2] - (Tu-22) Radar TWR, Tail Warning Radar & Tail Gun Director Max Range: 18.5 km |
Bomb Sight [OPB-15V] - (Tu-22) Visual Visual, Bomb Sight Max Range: 3.7 km |
TP-1 Tail Gun TV Sighting System - (Tu-22) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
SPS-3 - (Tu-22) ECM DECM, Defensive ECM Max Range: 0 km |
Short Horn [Rubin-1A] - (Tu-22, Smaller antenna) Radar Radar, Surface Search, Long-Range Max Range: 324.1 km |
Weapons / Loadouts: |
---|
OFAB-100-120 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-250M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-1500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
OFAB-250-270 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
AS-4 Kitchen B Mod 2 [Kh-22MA INS+TERCOM] -
(1976, Tu-22M-2, Tu-22KD) Guided Weapon Land Max: 555.6 km. |
