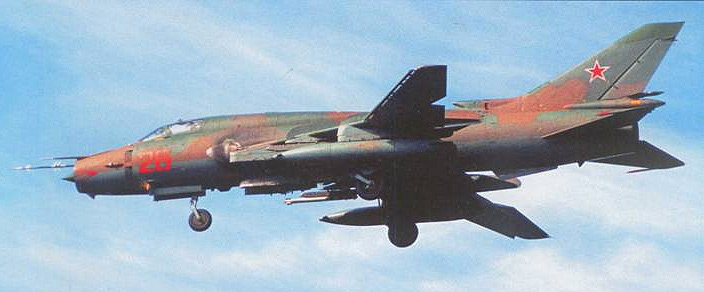

Su-17M-4 Fitter K - 1985, Afghanistan Mod; Armoured cockpit and fueselage
| General data: | |
|---|---|
| Type: Attack | Crew: 1 |
| Min Speed: 350 kt | Max Speed: 920 kt |
| Wingspan: 13.7 m | Height: 5.1 m |
| Length: 17.3 m | Max Payload: 0 kg |
| Empty Weight: 10880 kg | Max Weight: 19500 kg |
| Operator: Frontal Aviation [VVS] | Commissioned: 1985 |
| Propulsion: 1x AL-21F-3 | Decommissioned: 1991 |
| Sensors / EW: |
|---|
| Laser Designator [Klen-PS] - (Su-22M3/4, Su-25) Laser Designator Laser Target Designator & Ranger (LTD/R) Max Range: 9.3 km |
| SPO-15 Beryoza [L-006] - (Su-22M3/4, Su-25) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|
| AS-9 Kyle [Kh-28] -
(1974) Guided Weapon Surface Max: 120.4 km. Land Max: 120.4 km. |
| SPS-141MVG Gvozdika DECM Pod -
Sensor Pod |
| AA-8 Aphid [R-60] -
(1974) Guided Weapon Air Max: 9.3 km. |
| 820 liter Drop Tank -
Drop Tank |
| Metel [Emitter Locator] -
(AS-9, Su-17) Sensor Pod |
| FAB-500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| S-5K 57mm Rocket -
(OOS ~2014, Superseded by S-8) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| RBK-250-PTAB CB [30 x PTAB-2.5 Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| RBK-500-PTAB [268 x PTAB-1M Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-10 Karen [Kh-25L] -
(1974, Laser) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| AS-11 Kilter [Kh-58, ARM] -
(1983) Guided Weapon Surface Max: 111.1 km. Land Max: 111.1 km. |
| L-086 Viyuga [Emitter Locator] -
(AS-11/12) Sensor Pod |
| OFAB-100-120 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-250M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-7 Kerry [Kh-23] -
(1971) Guided Weapon Surface Max: 10 km. Land Max: 10 km. |
| S-8KO 80mm Rocket [HEAT] -
(1985) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| S-24B 240mm Rocket -
(V-24A Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| RBK-500-BetAB CB [12 x BetAB-20 Anti-Runway Penetrator Bomblets] -
Bomb Land Max: 1.9 km. |
| RBK-500-ZAB [117 x ZAB-2.5SM Incendiary] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| S-13B 122mm Rocket [Penetrator] -
(1984) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| FAB-100M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-500M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| FAB-250M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AS-12 Kegler [Kh-25MP, ARM] -
(1975) Guided Weapon Surface Max: 37 km. Land Max: 37 km. |
| AS-14 Kedge [Kh-29L] -
(1981) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| AS-14 Kedge [Kh-29T] -
(1985) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
| S-25O 266mm Rocket -
(1980) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| OFAB-250-270 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| RN-28 Tactical Bomb [1kT Nuclear] -
(Russia, 8U49, Su-24) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
| RN-40 Tactical Bomb [30kT Nuclear] -
(Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
