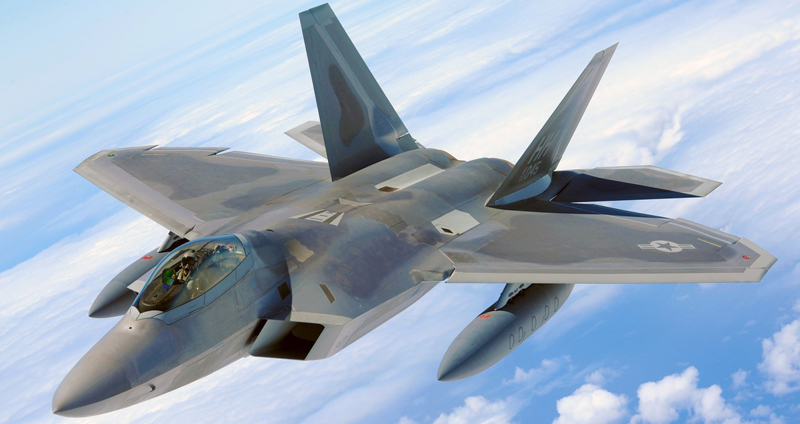

General data: | |
---|---|
Type: Multirole (Fighter/Attack) | Crew: 1 |
Min Speed: 350 kt | Max Speed: 1000 kt |
Wingspan: 13.6 m | Height: 5.08 m |
Length: 18.9 m | Max Payload: 4500 kg |
Empty Weight: 14365 kg | Max Weight: 38000 kg |
Operator: Air Force | Commissioned: 2008 |
Propulsion: 2x F119-PW-100 |
Sensors / EW: |
---|
AN/ALR-94 - ESM ELINT Max Range: 926 km |
AN/APG-77(V)1 AESA - (LPI) Radar Radar, FCR, Air-to-Air & Air-to-Surface, Long-Range Max Range: 407.4 km |
AN/APG-77(V)1 OECM - (F-22, Similar to AN/APG-81 OECM) ECM OECM, Offensive ECM Max Range: 0 km |
AN/AAR-56 PMAWS - (F-22) Infrared MAWS, Missile Approach Warning System Max Range: 9.3 km |
Weapons / Loadouts: |
---|
GBU-32(V)1/B JDAM [Mk83] -
(USAF, 2006) Guided Weapon Land Max: 24.1 km. |
AIM-120C-7 AMRAAM P3I.3 -
(2007) Guided Weapon Air Max: 120.4 km. |
AIM-9M Sidewinder -
(1984) Guided Weapon Air Max: 18.5 km. |
600 USG Drop Tank -
Drop Tank |
