General data:

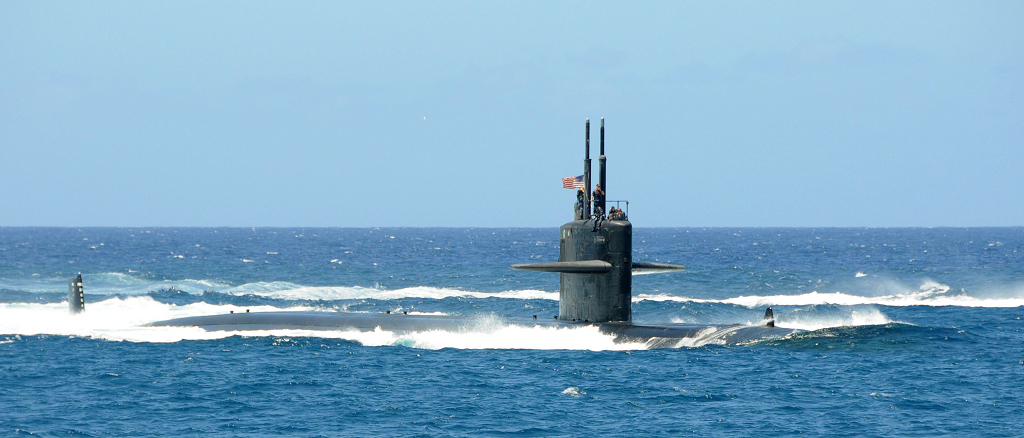

Type: SSN - Nuclear Powered Attack Submarine Max Depth: -300 m
Commissioned: 1985 Length: 109.7 m
Beam: 10.1 m Draft: 9.75 m
Crew: 129 Displacement: 6165 t
Propulsion: 1x S6G Nuclear Reactor Max Speed: 32 kt
Sensors / EW:
AN/WLR-8(V)2 - (Los Angeles) ESM
ELINT
Max Range: 926 km
AN/WLR-9A - (AN/BLR-14, Sonar Warning Receiver) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept & Torpedo Warning
Max Range: 27.8 km
AN/BPS-15A - (AN/BLR-14, Sonar Warning Receiver) Radar
Radar, Surface Search, Medium-Range
Max Range: 166.7 km
AN/BRD-7 - (AN/BLR-14, Sonar Warning Receiver) ESM
HF/DF
Max Range: 926 km
AN/TB-16A - (1985, 2600ft Fat-Line) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Fat Line Towed Array Sonar System
Max Range: 129.6 km
AN/BQQ-5C(V)1 [BQS-13] - (1985, Los Angeles, Assoc w TB-16A, AN/BQS-15, AN/WLR-9) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 74.1 km
AN/WLR-10 - (Assoc w AN/ALR-8) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/BQS-15 - (Assoc w AN/ALR-8) Hull Sonar, Active-Only
Hull Sonar, Active-Only Under-Ice Navigation and Mine & Obstacle Avoidance
Max Range: 0.7 km
Type 18 Periscope Optical Component - (Baseline, 1970s+) Visual
Visual, Surveillance Periscope
Max Range: 41.7 km
Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
Weapons:
UGM-109A Tomahawk TLAM-N [W80-0 200kT Nuclear] - (1985-2013, TT) Guided Weapon
Land Max: 2500.2 km.
UGM-109B Tomahawk TASM - (1985-1991, TT) Guided Weapon
Surface Max: 401.9 km.
UGM-84C Harpoon IB - (1984) Guided Weapon
Surface Max: 120.4 km.
UUM-44A SUBROC [10kT Nuclear DC] - (1966-1989) Guided Weapon
Subsurface Max: 55.6 km.
Mk48 Mod 4 - (1982, 75% success rate) Torpedo
Surface Max: 11.1 km. Subsurface Max: 11.1 km.
ADC Mk2 Mod 0 Torpedo Decoy - (1979, 3-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
