General data:
Type: SSN - Nuclear Powered Attack Submarine Max Depth: -450 m
Commissioned: 1973 Length: 106.9 m
Beam: 11.6 m Draft: 8.0 m
Crew: 82 Displacement: 5280 t
Propulsion: 1x VM-5m Nuclear Reactor, 177.4MW Max Speed: 40 kt
Decommissioned: 1988
Sensors / EW:
Shark Teeth [MGK-300 Rubin] - Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 14.8 km
Park Lamp - ESM
HF/DF
Max Range: 926 km
Shark Sail [MGK-300 Rubin] - Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept
Max Range: 27.8 km
Brick Pulp [MRP-21 Zaliv-P] - (Victor, Charlie) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Snoop Tray 2 [MRK-50 Kaskad] - (Victor, Charlie) Radar
Radar, Surface Search, Short-Range
Max Range: 37 km
Mine Avoidance [MG-509 Radian-1] - (Papa, Victor I/II) Hull Sonar, Active-Only
Hull Sonar, Active-Only Mine & Obstacle Avoidance
Max Range: 0.9 km
Weapons:

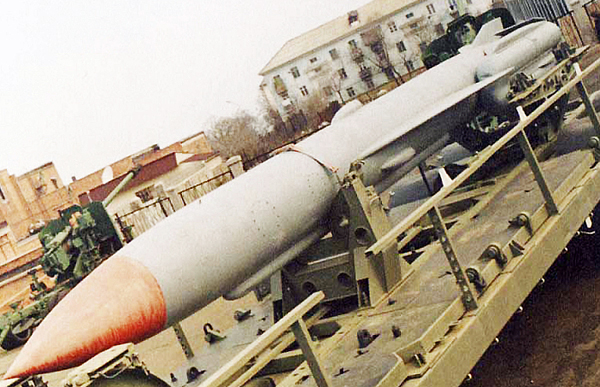

SS-N-7 Starbright [P-70 Ametist] - Guided Weapon
Surface Max: 74.1 km.
SS-N-7 Starbright [P-70 Ametist, 200kT Nuclear] - Guided Weapon
Surface Max: 74.1 km.
Generic Acoustic Decoy - (1970s, Noisemaker / Bubble Screen) Decoy (Expendable)
Subsurface Max: 1.9 km.
53-65K WH - (1972, Submarine, Widely Used) Torpedo
Surface Max: 7.4 km.
53-65N Gyro [NATO 53-68N, 20kT Nuclear] - (1971, Submarine) Torpedo
Surface Max: 7.4 km.
SET-65M Enot-2 [NATO ET-80A[76]] - (1973, Submarine) Torpedo
Subsurface Max: 7.4 km.
