General data:

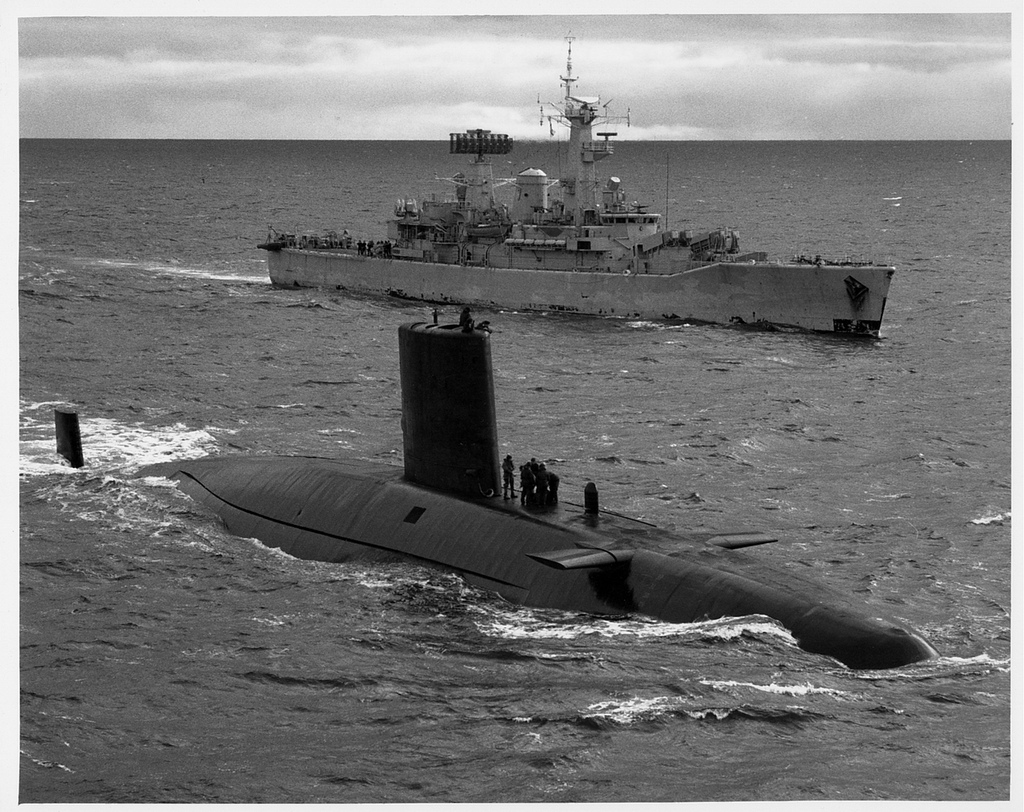

Type: SSN - Nuclear Powered Attack Submarine Max Depth: -300 m
Commissioned: 1981 Length: 86.9 m
Beam: 10.1 m Draft: 8.2 m
Crew: 103 Displacement: 4500 t
Propulsion: 1x Nuclear Reactor Max Speed: 28 kt
Sensors / EW:
UA-4 - ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Type 2024 - (1976, Clip-On) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Towed Array Sonar System
Max Range: 74.1 km
Type 2019 [DUUG 2] - (1976, Clip-On) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept
Max Range: 27.8 km
Type 2007AA - (1972) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 74.1 km
Type 2001BC - (SSN Bow Sonar) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search
Max Range: 33.3 km
Type 1006(1) [KH 19/9A] - (Submarines) Radar
Radar, Surface Search & Navigation
Max Range: 118.5 km
Weapons:

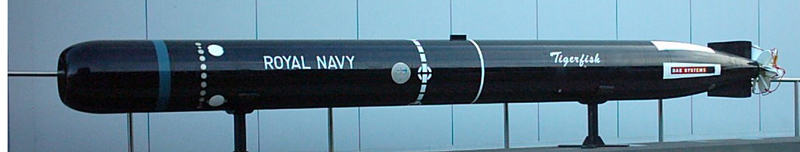

Mk24 Tigerfish Mod 1 - (1980, Dual) Torpedo
Surface Max: 7.4 km. Subsurface Max: 7.4 km.
Mk8 Straight-Runner - Torpedo
Surface Max: 5.6 km.
