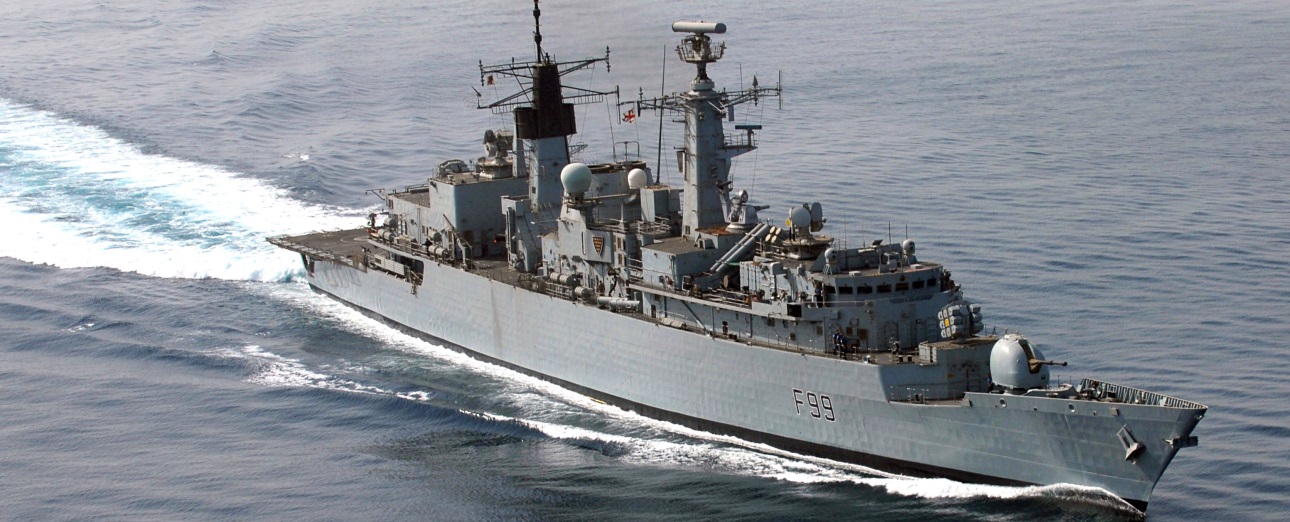

General data:
Type: FFG - Guided Missile Frigate Max Speed: 30 kt
Crew: 250 Length: 148.1 m
Beam: 14.8 m Draft: 6.4 m
Displacement Full: 0 t Displacement: 5300 t
Operator: Royal Navy Commissioned: 2006
Propulsion: 2x Rolls-Royce Tyne RM-1C Cruise Gas Turbines, 2x Rolls-Royce Olympus TM-3B Boost Gas Turbines, COGOG Decommissioned: 2010
Sensors / EW:
UAK Outboard [AN/SSQ-108(V)1/2] - ESM
HF/DF w/ OTH Targeting
Max Range: 926 km
UAT-6 Sceptre XL - (Upgraded, Type 22) ESM
ELINT
Max Range: 926 km
Type 2050 [UMS 4110C] - (1988, Improved Type 2016, FMS 21) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 29.6 km
Type 1007 - (1988, KH 1007) Radar
Radar, Surface Search & Navigation
Max Range: 177.8 km
Type 967/968 - (Sea Wolf Search-And-Aquisition) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 222.2 km
Type 911 [GWS.25/26] - (1988, Sea Wolf FCR) Radar
Radar, FCR, Surface-to-Air, Short-Range
Max Range: 33.3 km
GSA 8 Sea Archer 30 [FLIR] - (Group, Type 22 Batch 3) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
GSA 8 Sea Archer 30 [Laser Rangefinder] - (Group, Type 22 Batch 3) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
GSA 8 Sea Archer 30 [CCD] - (Group, Type 22 Batch 3) Visual
LLTV, Weapon Director
Max Range: 185.2 km
Type 162M Cockshafer - (Group, Type 22 Batch 3) Hull Sonar, Active-Only
Hull Sonar, Active-Only Bottom Profiler
Max Range: 1.3 km
Weapons:
Type 182 Towed Torpedo Decoy - Decoy (Towed)
Surface Max: 1.9 km.
30mm/75 Twin Oerlikon GCM-AO1 APDS Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
30mm/75 Twin Oerlikon GCM-AO1 HE Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
Mk214 Sea Gnat Chaff [Seduction] - (1987) Decoy (Expendable)
Surface Max: 1.9 km.
Mk245 GIANT Flare - (1997, DM19A1) Decoy (Expendable)
Surface Max: 1.9 km.
Mk216 Sea Gnat Chaff [Distraction] - (1988) Decoy (Expendable)
Surface Max: 1.9 km.
114mm/55 Mk8 HE(MP) HE - Gun
Air Max: 2.8 km. Surface Max: 18.5 km. Land Max: 18.5 km.
30mm Goalkeeper Burst [240 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
Sea Wolf Blk 2 - (2006) Guided Weapon
Air Max: 11.1 km.
Generic GMTR [Guided Missile Training Round] - (Aka Drill Round) Training Round
RGM-84D Harpoon IC - (1986) Guided Weapon
Surface Max: 138.9 km.

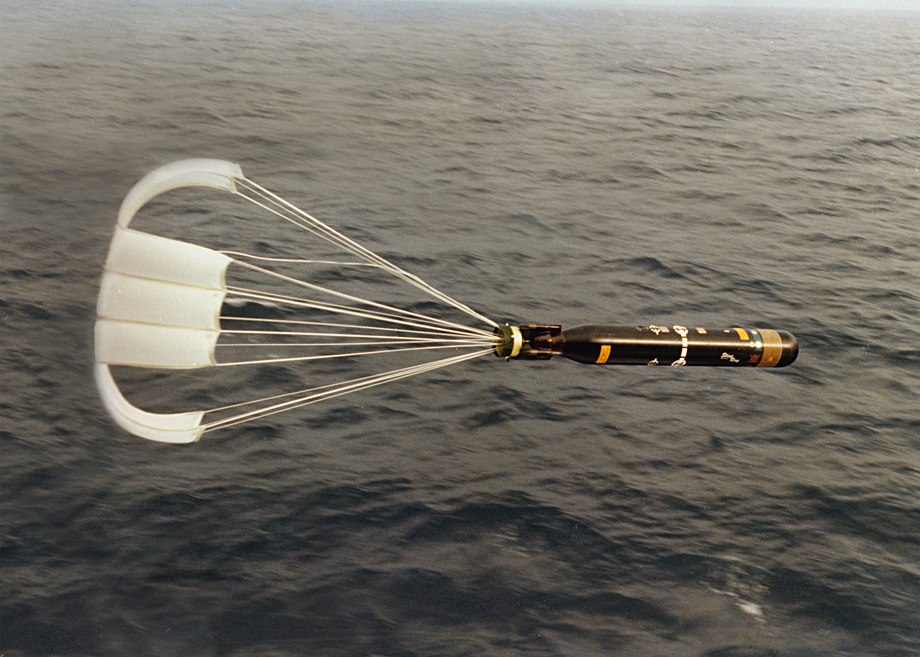

Stingray Mod 1 - (2006) Torpedo
Subsurface Max: 7.4 km.
DLF(3) Advanced Inflatable Decoy - Decoy (Expendable)
Surface Max: 1.9 km.
