General data:

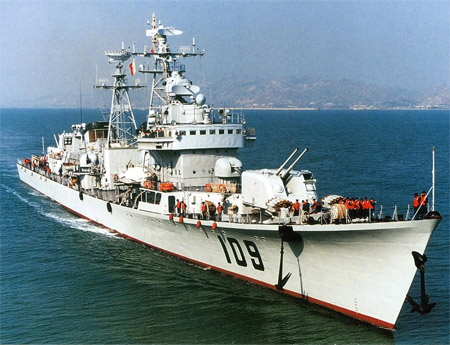

Type: DDG - Guided Missile Destroyer Max Speed: 32 kt
Crew: 280 Length: 132.0 m
Beam: 12.8 m Draft: 4.4 m
Displacement Full: 3960 t Displacement: 3670 t
Operator: Navy Commissioned: 1992
Propulsion: 2x Boilers, 4x Steam Turbines
Sensors / EW:
China Type 352 Square Tie - (SSM, Rangout) Radar
Radar, FCR, Surface-to-Surface
Max Range: 74.1 km
Crotale TV Tracker - (Group, Crotale FCR, Castor IIJ?) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 74.1 km
China Type 345 [Radar] - (Crotale) Radar
Radar, FCR, Surface-to-Air, Short-Range
Max Range: 29.6 km
Piranha [IR] - (Castor IIJ) Infrared
Infrared, Target Tracking and Identification Camera
Max Range: 148.2 km
China Type 923-1 Jug Pair - (RW-23-1, Watch Dog) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
China Type 343 Sun Visor [Radar] - (Group, 100mm FCS) Radar
Radar, FCR, Weapon Director
Max Range: 27.8 km
China Type 343 Wasp Head [Visual Director] - (Group, 100mm FCS) Visual
Visual, Weapon Director TV Camera
Max Range: 74.1 km
China Type 726 Fin Curve [Decca 707 Copy] - (Group, 100mm FCS) Radar
Radar, Surface Search & Navigation
Max Range: 37 km
China Type 354 Eye Shield - (2D, MX-902) Radar
Radar, Air & Surface Search, 3D Medium-Range
Max Range: 185.2 km
China Type 341 Rice Lamp - (37mm) Radar
Radar, FCR, Weapon Director
Max Range: 37 km
China Type 517 Knife Rest - (Pea Sticks) Radar
Radar, Air Search, 2D Medium-Range
Max Range: 203.7 km
China SJD-2 - (Luda) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search
Max Range: 3.7 km
China SJD-4 - (Luda) Hull Sonar, Active-Only
Hull Sonar, Active-Only Mortar Fire Control
Max Range: 3.7 km
Weapons:
China Type 65 ASW Rocket Salvo [6 rnds] - Rocket
Subsurface Max: 1.9 km.
130mm/58 Twin SAP Burst [2 rnds] - Gun
Surface Max: 18.5 km. Land Max: 18.5 km.
130mm/58 Twin HE Burst [2 rnds] - Gun
Air Max: 3.3 km. Surface Max: 18.5 km. Land Max: 18.5 km.
A.244 - (1976) Torpedo
Subsurface Max: 5.6 km.
HQ-7 Crotale [FM-80] Naval - (China, 1990, CSA-4) Guided Weapon
Air Max: 9.3 km. Surface Max: 9.3 km.
HY-1J [CSS-N-2 Safflower, Ship] - (1979) Guided Weapon
Surface Max: 129.6 km.
37mm/63 Twin Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
