General data:

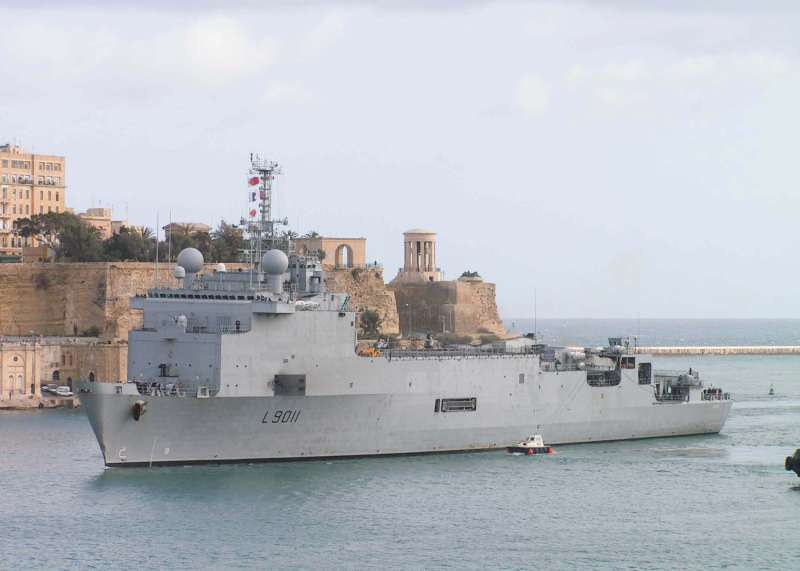

Type: LPD - Amphibious Transport Dock Vessel Max Speed: 21 kt
Crew: 160 Length: 168.0 m
Beam: 23.5 m Draft: 5.2 m
Displacement Full: 12000 t Displacement: 11300 t
Operator: Navy Commissioned: 1998
Propulsion: 2x SEMT-Pielstick 16 PC2.5 V400 Diesels Decommissioned: 2010
Sensors / EW:
Telegon 4 - (AK 1200) ESM
HF/DF
Max Range: 926 km
DRBV 21A MARS [TRS 3015] - (AK 1200) Radar
Radar, Air & Surface Search, 2D Medium-Range
Max Range: 111.1 km
DRBN 34 [Decca 1229] - (AK 1200) Radar
Radar, Surface Search & Navigation
Max Range: 46.3 km
Vigy 105 [CCD] - (Group, 1998, Tracker) Visual
LLTV, Weapon Director
Max Range: 185.2 km
Vigy 105 [IR] - (Group, 1998, Tracker) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
Vigy 105 [Laser Rangefinder] - (Group, 1998, Tracker) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
ARBB 36 [RWR] - (Salamandre) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
ARBB 36 [ECM] - (Salamandre) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
DRBN 35 [Decca 2459 F/I] - (Salamandre) Radar
Radar, Surface Search & Navigation
Max Range: 46.3 km
Weapons:
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
30mm/82 Compact OTO-Breda/Mauser Mk30 Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
Mistral 1 - (1991, Director) Guided Weapon
Air Max: 5.6 km.
