General data:
Type: FFL - Corvette Max Speed: 31 kt
Crew: 100 Length: 121.0 m
Beam: 16.3 m Draft: 4.4 m
Displacement Full: 3590 t Displacement: 3200 t
Operator: Navy Commissioned: 2016
Propulsion: 2x MTU 16V 1163 TB93 Diesels, 1x General Electric LM-2500 Gas Turbine, CODAG
Sensors / EW:
Sea Giraffe AMB 3D - (2005, AN/SPS-77(V)1) Radar
Radar, Target Indicator, 3D Surface-to-Air & Surface-to-Surface
Max Range: 148.2 km
UMS 4132 Kingklip - (2005, AN/SPS-77(V)1) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 29.6 km
Shrike SME - (South Africa, Grintek) ESM
ELINT
Max Range: 926 km
RTS 6400 [Radar] - (Group) Radar
Radar, FCR, Weapon Director
Max Range: 59.3 km
RTS 6400 [IR] - (Group) Infrared
Infrared, Weapon Director & Target Search, Slaved Tracking and Identification Camera
Max Range: 185.2 km
RTS 6400 [CCD] - (Group) Visual
LLTV, Weapon Director & Target Search, Slaved Tracking and Identification
Max Range: 185.2 km
RTS 6400 [Laser Rangefinder] - (Group) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
Scout Mk.2 - (Group) Radar
Radar, Surface Search & Navigation
Max Range: 44.4 km
Black Snake [WASS / Morpheus] - (Integrated with WASS) TASS, Passive-Only Towed Array Sonar System
TASS, Passive Torpedo Warning Towed Array Sonar System
Max Range: 7.4 km
CEROS 200 Tracker [9LV Mk3 Basic] - (Group, PE 723 Radar, 9GR400) Radar
Radar, FCR, Surface-to-Air & Surface-to-Surface, Short-Range
Max Range: 46.3 km
EOS 500 [CCD] - (Group, PE 723 Radar, 9GR400) Visual
LLTV, Weapon Director
Max Range: 185.2 km
EOS 500 [IR Camera] - (Group, PE 723 Radar, 9GR400) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
EOS 500 [Laser Rangefinder] - (Group, PE 723 Radar, 9GR400) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
Weapons:
RB 15M Mk3 - (2008) Guided Weapon
Surface Max: 203.7 km. Land Max: 203.7 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
30mm/75 DS30M Mk2 APDS Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
30mm/75 DS30M Mk3 HE Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.

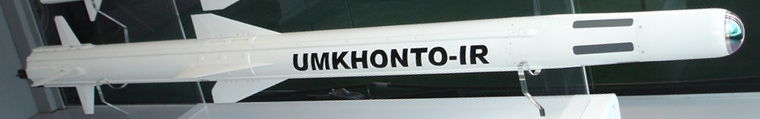

Umkhonto-IR Mk1 - (South Africa, 2004, SAM) Guided Weapon
Air Max: 11.1 km.
DUAL TRAP Chaff/Flare - Decoy (Expendable)
Surface Max: 1.9 km.
127mm/64 HECVT - Gun
Air Max: 2.8 km. Surface Max: 22.2 km. Land Max: 27.8 km.
127mm/64 HE - Gun
Air Max: 2.8 km. Surface Max: 22.2 km. Land Max: 27.8 km.
MU-90 Impact - (2003, Ex-Murene, Ex-A.290) Torpedo
Subsurface Max: 7.4 km.
CIRCE Torpedo Jammer - (C303/S, C310, TAU, Ship) Decoy (Expendable)
Surface Max: 1.9 km.
CIRCE Torpedo Decoy - (C303/S, C310, TAU, Ship) Decoy (Expendable)
Surface Max: 1.9 km.
