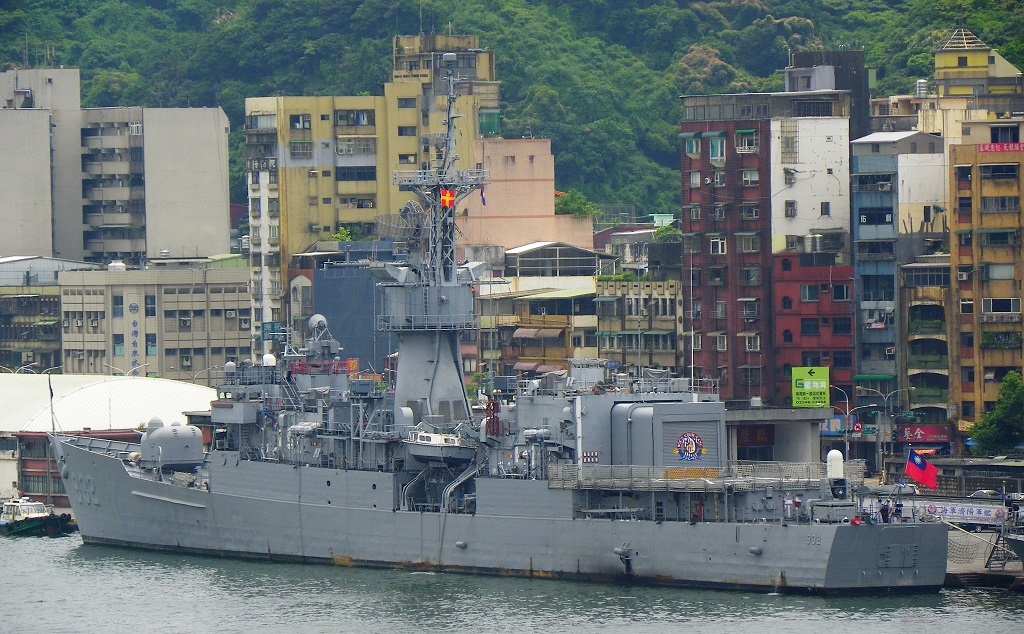

General data:
Type: FF - Frigate Max Speed: 30 kt
Crew: 285 Length: 133.5 m
Beam: 14.4 m Draft: 7.6 m
Displacement Full: 4260 t Displacement: 3800 t
Operator: Navy Commissioned: 2005
Propulsion: 2x Combustion Engineering V2M Boilers, 1x Westinghouse Steam Turbine
Sensors / EW:
STIR 180 [Radar] - (SM-1) Radar
Radar, FCR, Surface-to-Air & Surface-to-Surface, Short-Range
Max Range: 59.3 km
STIR 180 [IR Camera] - (SM-1) Infrared
Infrared, Target Tracking and Identification Camera
Max Range: 185.2 km
STIR 180 [TV Camera] - (SM-1) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 185.2 km
AN/SQS-26CX - (1969, California, Knox) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 64.8 km
AN/SQR-18A - (1980, SQS-35 VDS Fish, EDO 950) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Towed Array Sonar System
Max Range: 74.1 km
AN/SPS-64(V)9 [RM 1220 6X] - (20kW, USN, 1x antenna) Radar
Radar, Surface Search & Navigation
Max Range: 37 km
DA.08/2 - (Dual Beam, PFN 513, AN/SPQ-50) Radar
Radar, Air & Surface Search, 2D Medium-Range
Max Range: 185.2 km
AN/SPG-53F [Mk68 GFCS, Radar] - (Group) Radar
Radar, FCR, Weapon Director
Max Range: 111.1 km
AN/SPG-53F [Mk68 GFCS, Visual] - (Group) Visual
Visual, Weapon Director TV Camera
Max Range: 74.1 km
AN/SLQ-32(V)2 [ESM] - (Group, 1983) ESM
ELINT
Max Range: 926 km
AN/SPS-67(V)1 - (1982) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
Weapons:
RIM-66A SM-1MR Blk IV - (1969, Main Production Variant) Guided Weapon
Air Max: 33.3 km. Surface Max: 33.3 km.
Mk186 TORCH Flare [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
Mk182 SRBOC Chaff [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
RUR-5A Mod 4 ASROC RTT [Mk46 Mod 5] - Guided Weapon
Subsurface Max: 18.5 km.
AN/SLQ-25 Nixie - Decoy (Towed)
Surface Max: 1.9 km.
Mk46 NEARTIP Mod 5 - (1984) Torpedo
Subsurface Max: 7.4 km.
20mm/85 Mk15 Phalanx Blk 0 Burst [200 rnds] - Gun
Air Max: 1.5 km.
20mm Type 75 Burst [20 rnds] - Gun
Air Max: 1.5 km. Surface Max: 1.9 km. Land Max: 1.9 km.
127mm/54 HE-CVT [HiFrag] - (USN) Gun
Air Max: 2.8 km. Surface Max: 20.4 km. Land Max: 20.4 km.
127mm/54 HE-PD [HiCap] - (USN) Gun
Air Max: 2.8 km. Surface Max: 20.4 km. Land Max: 20.4 km.
