General data:

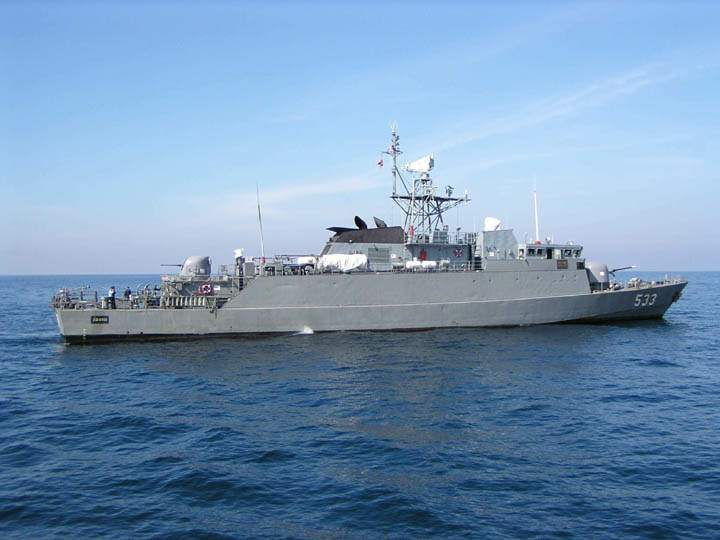

Type: FFL - Corvette Max Speed: 25 kt
Crew: 57 Length: 62.0 m
Beam: 8.3 m Draft: 2.5 m
Displacement Full: 630 t Displacement: 475 t
Operator: Navy Commissioned: 1993
Propulsion: 2x MTU 12V 1163 TB93 Diesels
Sensors / EW:
DSQS-21CZ [CSU 83] - (FFL, Assoc w ASO 84) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 29.6 km
AWS.4 - (Type 994, Type 294) Radar
Radar, Target Indicator, 2D Surface-to-Air & Surface-to-Surface
Max Range: 111.1 km
GSA 7 Sea Archer [Laser Rangefinder] - (Group, 1988) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
GSA 7 Sea Archer [IR] - (Group, 1988) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
GSA 7 Sea Archer [LLTV] - (Group, 1988) Visual
LLTV, Weapon Director
Max Range: 185.2 km
Cutlass E - (Small Ship) ESM
ELINT
Max Range: 926 km
Decca 1226 - (Small Ship) Radar
Radar, Surface Search & Navigation
Max Range: 46.3 km
Weapons:
Stingray Mod 0 - (1986) Torpedo
Subsurface Max: 7.4 km.
Plessey Shield Flare - Decoy (Expendable)
Surface Max: 1.9 km.
Plessey Shield Chaff - Decoy (Expendable)
Surface Max: 1.9 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
30mm/70 OTO Breda Burst [20 rnds] - Gun
Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km.
76mm/62 Mk1 HE - Gun
Air Max: 2.8 km. Surface Max: 11.1 km. Land Max: 11.1 km.
