General data:

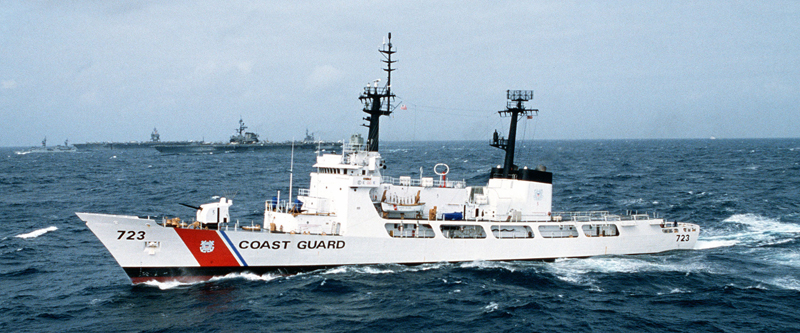

Type: WHEC - Coast Guard High Endurance Cutter Max Speed: 29 kt
Crew: 177 Length: 115.4 m
Beam: 13.1 m Draft: 4.3 m
Displacement Full: 3050 t Displacement: 2716 t
Operator: Coast Guard Commissioned: 1984
Propulsion: 2x Fairbanks-Morse 38TD8-1/8 Diesels, 2x Pratt & Whitney FT4-A6 Gas Turbines, CODOG
Sensors / EW:
AN/WLR-1F - ESM
ELINT
Max Range: 926 km
AN/WLR-3 - (RWR for AN/WLR-1) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
Mk35 - (GFCR) Radar
Radar, FCR, Weapon Director
Max Range: 27.8 km
AN/SQS-38 - (1968) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 14.8 km
AN/SPS-40 - (1963) Radar
Radar, Air Search, 2D Long-Range
Max Range: 407.4 km
AN/SPS-64(V)6 [Raycas 1660 12S] - (60kW, USCG, 1x 50kW + 1x 60kW antenna) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
AN/SPS-64(V)6 [RM 1250 6X] - (50kW, USCG, 1x 50kW + 1x 60kW antenna) Radar
Radar, Surface Search & Navigation
Max Range: 64.8 km
Weapons:
127mm/38 HE-PD [HiCap] - (USN) Gun
Air Max: 2.8 km. Surface Max: 16.7 km. Land Max: 16.7 km.
127mm/38 AA-VT [AntiAircraft Common] - (USN, Anti-Aircraft Frag) Gun
Air Max: 2.8 km. Surface Max: 16.7 km. Land Max: 16.7 km.
Mk46 NEARTIP Mod 5 - (1984) Torpedo
Subsurface Max: 7.4 km.
Mk46 LWT Mod 2 - (1972) Torpedo
Subsurface Max: 5.6 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk186 TORCH Flare [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
Mk182 SRBOC Chaff [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
