General data:

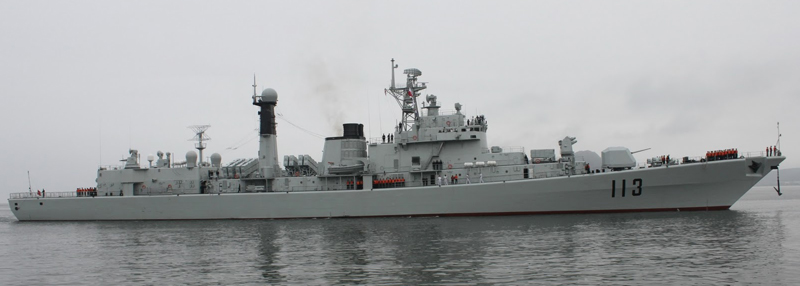

Type: DDG - Guided Missile Destroyer Max Speed: 31 kt
Crew: 230 Length: 148.0 m
Beam: 15.6 m Draft: 7.5 m
Displacement Full: 5700 t Displacement: 4800 t
Operator: Navy Commissioned: 2012
Propulsion: 2x MTU 12V 1163 TB83 Diesels, 2x General Electric LM-2500 Gas Turbines, CODOG
Sensors / EW:
Crotale TV Tracker - (Group, Crotale FCR, Castor IIJ?) Visual
Visual, Target Tracking and Identification TV Camera
Max Range: 74.1 km
China Type 345 [Radar] - (Crotale) Radar
Radar, FCR, Surface-to-Air, Short-Range
Max Range: 29.6 km
Piranha [IR] - (Castor IIJ) Infrared
Infrared, Target Tracking and Identification Camera
Max Range: 148.2 km
China Type 344 - (GFCR, 100mm, MR-34) Radar
Radar, FCR, Weapon Director
Max Range: 27.8 km
China Type 517H-1 Knife Rest - (Pea Sticks) Radar
Radar, Air Search, 2D Long-Range
Max Range: 333.4 km
China SJD-9 [DUBV 23] - (Luda III, Luhu) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 14.8 km
China Type 364 - (SR-64, Seagull-C) Radar
Radar, Target Indicator, 2D Surface-to-Air
Max Range: 129.6 km
China Type 775 [LLVT] - (Group, Surveillance-Only, GDG-775) Visual
LLTV, Surveillance Camera
Max Range: 55.6 km
China Type 775 [RO Radar] - (Group, Surveillance-Only, GDG-775) Radar
Radar, Range-Only (RO)
Max Range: 14.8 km
China Type 775 [Laser Rangefinder] - (Group, Surveillance-Only, GDG-775) Laser Rangefinder
Laser Rangefinder
Max Range: 0 km
China Type 775 [IR] - (Group, Surveillance-Only, GDG-775) Infrared
Infrared, Surveillance Camera
Max Range: 55.6 km
China Type 826 - (HZ100, Assoc w Type 984/985 Jammer) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
China Type 984 [ECM] - (RAMSES) ECM
OECM & DECM, Offensive & Defensive ECM
Max Range: 0 km
China Type 984 [RWR] - (RAMSES) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
China SJG-206 TASS - (Assoc w SJD-9, Surface Units) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Towed Array Sonar System
Max Range: 129.6 km
Weapons:
China Type 65 ASW Rocket Salvo [6 rnds] - Rocket
Subsurface Max: 1.9 km.
YJ-83 [C-802A, CSS-N-8 Saccade] - (1999) Guided Weapon
Surface Max: 185.2 km.
100mm/55 H/PJ-87 Twin HECVT Burst [2 rnds] - Gun
Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km.
100mm/55 H/PJ-87 Twin HE Burst [2 rnds] - Gun
Surface Max: 13 km. Land Max: 13 km.
Yu-7 - (China, 1998?) Torpedo
Subsurface Max: 3.7 km.
Generic Flare Rocket [Single Spectral] - (Ship-only) Decoy (Expendable)
Surface Max: 1.9 km.
Generic Chaff Rocket - (Ship-only) Decoy (Expendable)
Surface Max: 1.9 km.
HQ-7B Crotale [FM-90] Naval - (China, 2012, CSA-4) Guided Weapon
Air Max: 13 km. Surface Max: 13 km.
30mm China H/PJ-12 [Type 730, 240 rnds] - (China, Goalkeeper Copy) Gun
Air Max: 1.9 km. Surface Max: 2.8 km.
