General data:

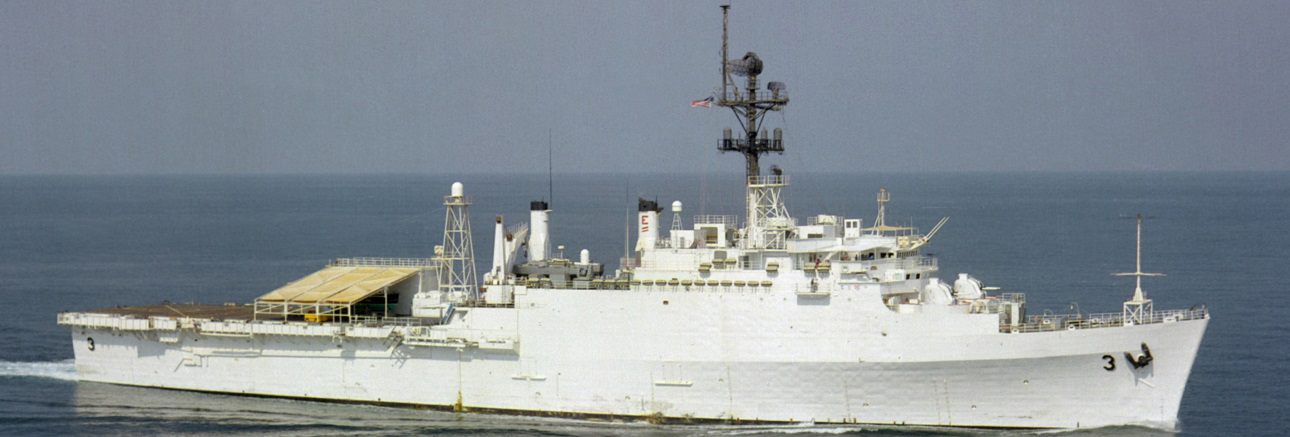

Type: LPD - Amphibious Transport Dock Vessel Max Speed: 22 kt
Crew: 665 Length: 159.1 m
Beam: 30.5 m Draft: 6.7 m
Displacement Full: 13853 t Displacement: 9712 t
Operator: Navy Commissioned: 1983
Propulsion: 2x Boilers, 2x Steam Turbines
Sensors / EW:
AN/WLR-1 - (Generic) ESM
ELINT
Max Range: 926 km
AN/SLQ-32(V)1 [RWR] - (Group, 1980) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
AN/SPS-10B - (Group, 1980) Radar
Radar, Surface Search & Navigation
Max Range: 74.1 km
AN/SPS-40 - (1963) Radar
Radar, Air Search, 2D Long-Range
Max Range: 407.4 km
AN/SPS-64(V)9 [RM 1220 6X] - (20kW, USN, 1x antenna) Radar
Radar, Surface Search & Navigation
Max Range: 37 km
Weapons:
25mm/75 Bushmaster Mod 1 Burst [12 rnds] - Gun
Air Max: 1.5 km. Surface Max: 2.8 km. Land Max: 2.8 km.
20mm/85 Mk15 Phalanx Blk 0 Burst [200 rnds] - Gun
Air Max: 1.5 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
Mk186 TORCH Flare [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
Mk182 SRBOC Chaff [Seduction] - (1979) Decoy (Expendable)
Surface Max: 1.9 km.
